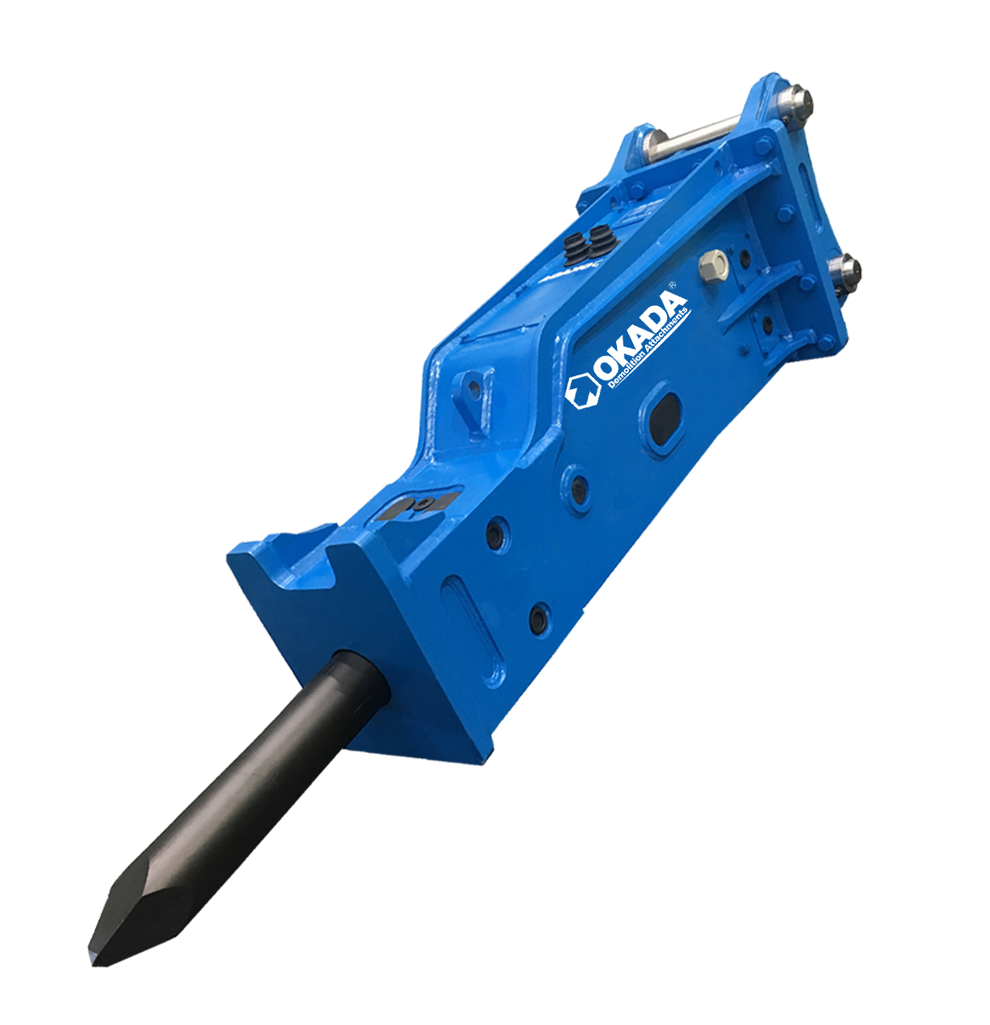

Okada Top Series Hydraulic Breakers

Precision machining processes and strict Okada quality control are used to produce all main breaker components. There is no need for complete assembly replacements and the use of high precision parts mean economical, labor-saving rebuilds of your Okada breaker.
Breaker brackets are made of heavy gauge high tensile steel plates and are designed to give maximum protection to the breaker body and dissipate heat while making it easier to access the equipment during daily maintenance inspection.
  Okada bushing designs, a special heat treatment process and individually lubricated bushings enhance the service life of wear parts.
150-1250 FT-LBS CLASS

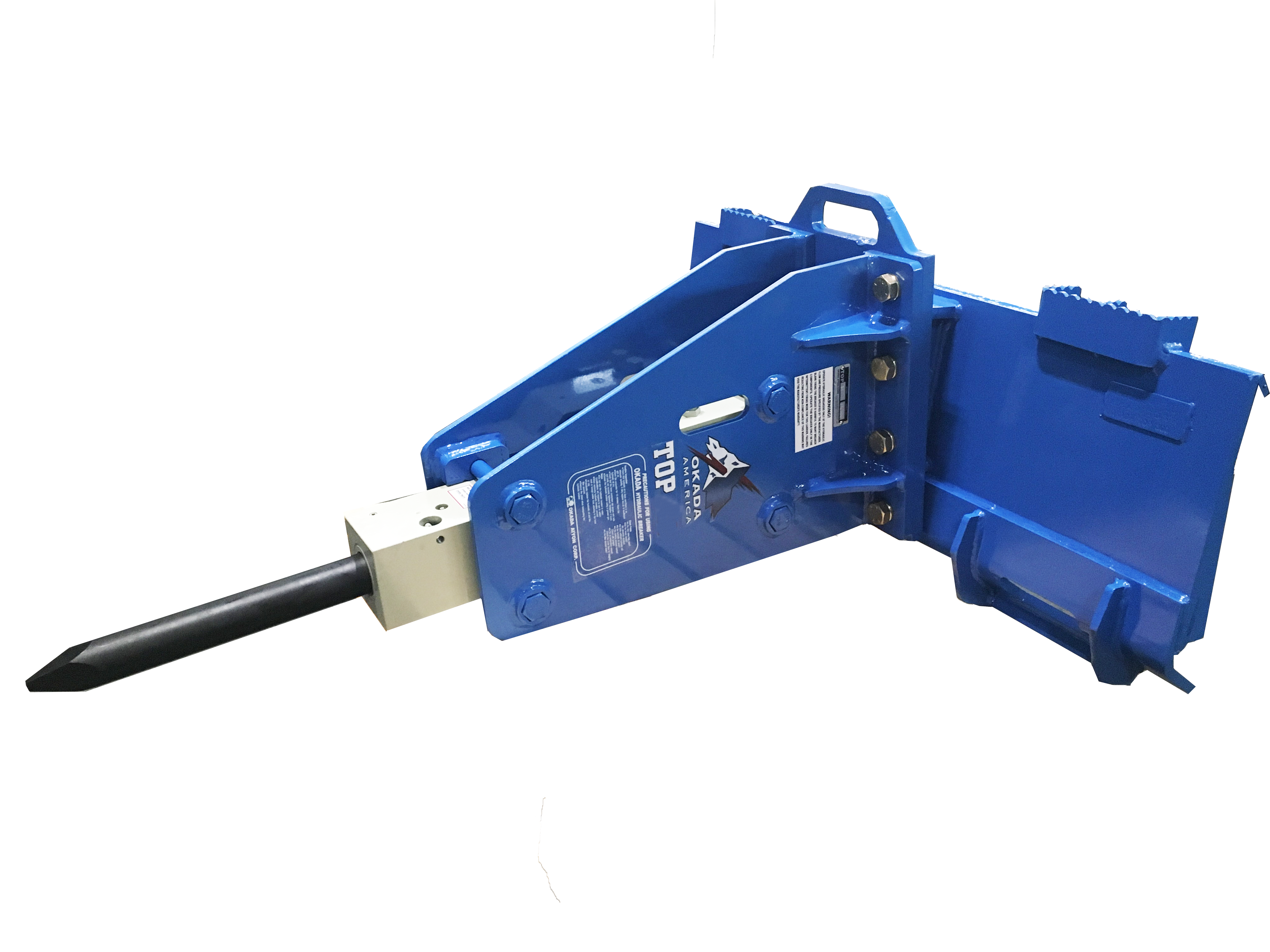

Okada small hammers are suitable for use with mini excavators, skid-steer loaders and tractor loader backhoes. Typical applications include demolition, excavation and trenching. Customized upper mounting brackets (UMBs) and quick coupler systems are available for all Okada breakers.
  2000-7500FT-LBS CLASS
Okada’s medium class breakers are available in a wide range of designs, from those specifically engineered to provide maximum impact energy for the toughest rock applications to others suited for a combination of concrete and rock breaking with the potential for faster blow speeds.
12000-15000 FT-LBS CLASS

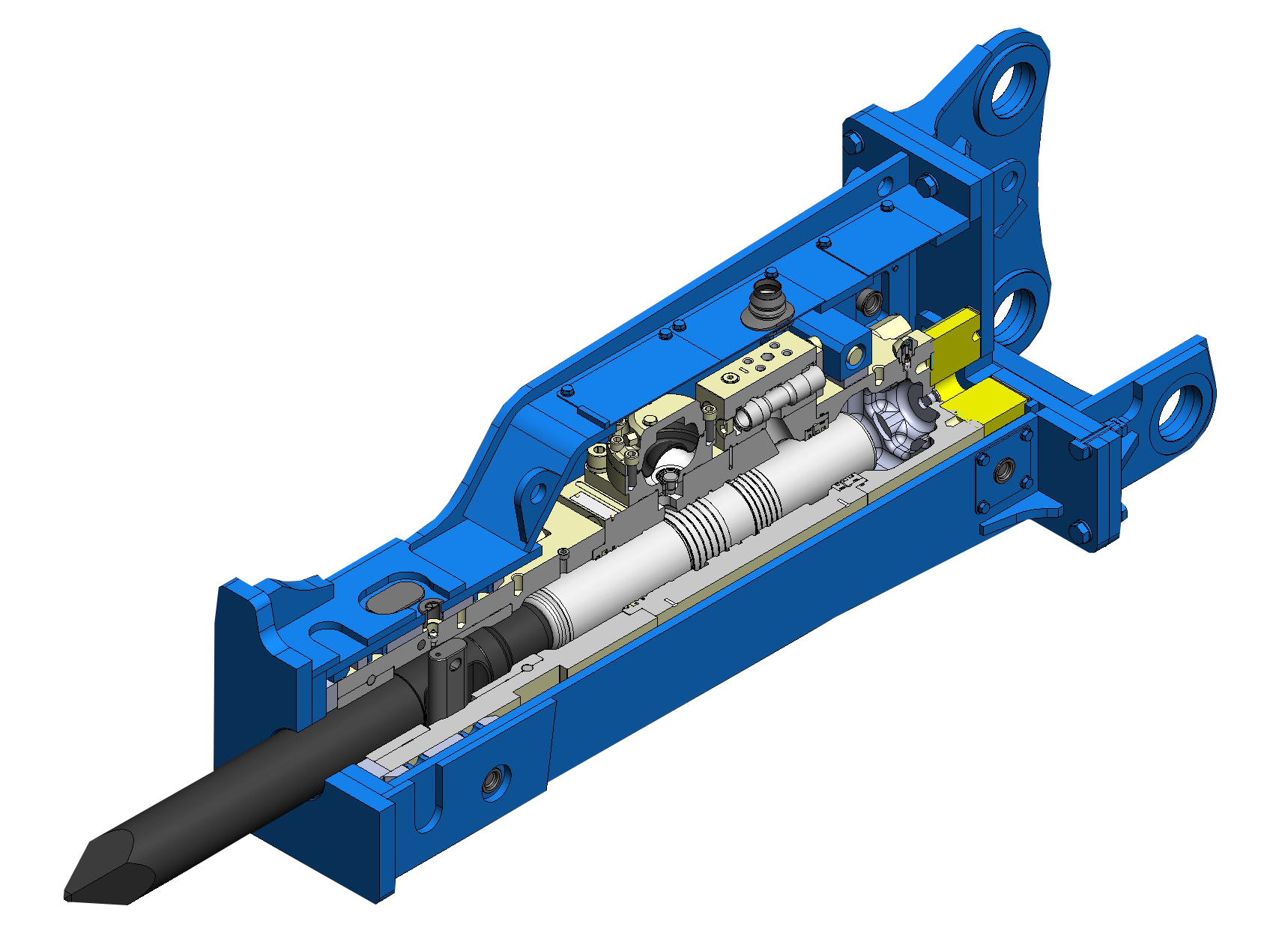

The square-shaped main body is created using a special alloy and subjected to advanced heat treatment processing, making the hammer body extremely durable. In addition, Okada hammers use fewer parts than competing brands of hydraulic breakers, so there is far less chance of problems developing. New special alloy steels and an advanced heat treatment system enhance main component durability.
Medium and heavy class TOP series breakers are compatible with auto lube systems. By adding greasing points, both the shank bushing and front cap bushing are lubricated individually, resulting in longer service life.


TOP HYDRAULIC HAMMERS
	TOP Series
	Impact Energy Class (Ft-Lb)	Model	Weight*  (lbs)	Tool Dia (in)	Frequency  (bpm)	Oil Flow** (gpm)	Operating Pressure (psi)	Carrier Range  (m tons)	Carrier Range (lbs)
	375	TOP31	386	2.24	450-1000	7-15	1450-2030	1.5-4	3,300-8,800
	550	TOP35B	565	2.4	380-1000	13-17	1600-2400	2-4	4,400-8,800
	850	TOP45C	717	2.68	380-900	14-20	1740-2400	4.5-8	10,000-18,000
	1,000	TOP55B	1060	2.9	400-1100	15-23	2030-2465	4.5-8	10,000-18,000
	1,250	TOP60C	1347	3.35	350-700	16-26	1990-2418	5-9	12,000-20,000
	1,750	TOP90	1450	3.9	550-850	22-31	2030-2610	7-12	15,000-26,000
	2,500	TOP100A	2440	4.3	550-710	29-35	2030-2610	10-18	22,000-42,000
	3,000	TOP150	3000	4.8	600-750	30-35	2030-1610	13-19	28,000-42,000

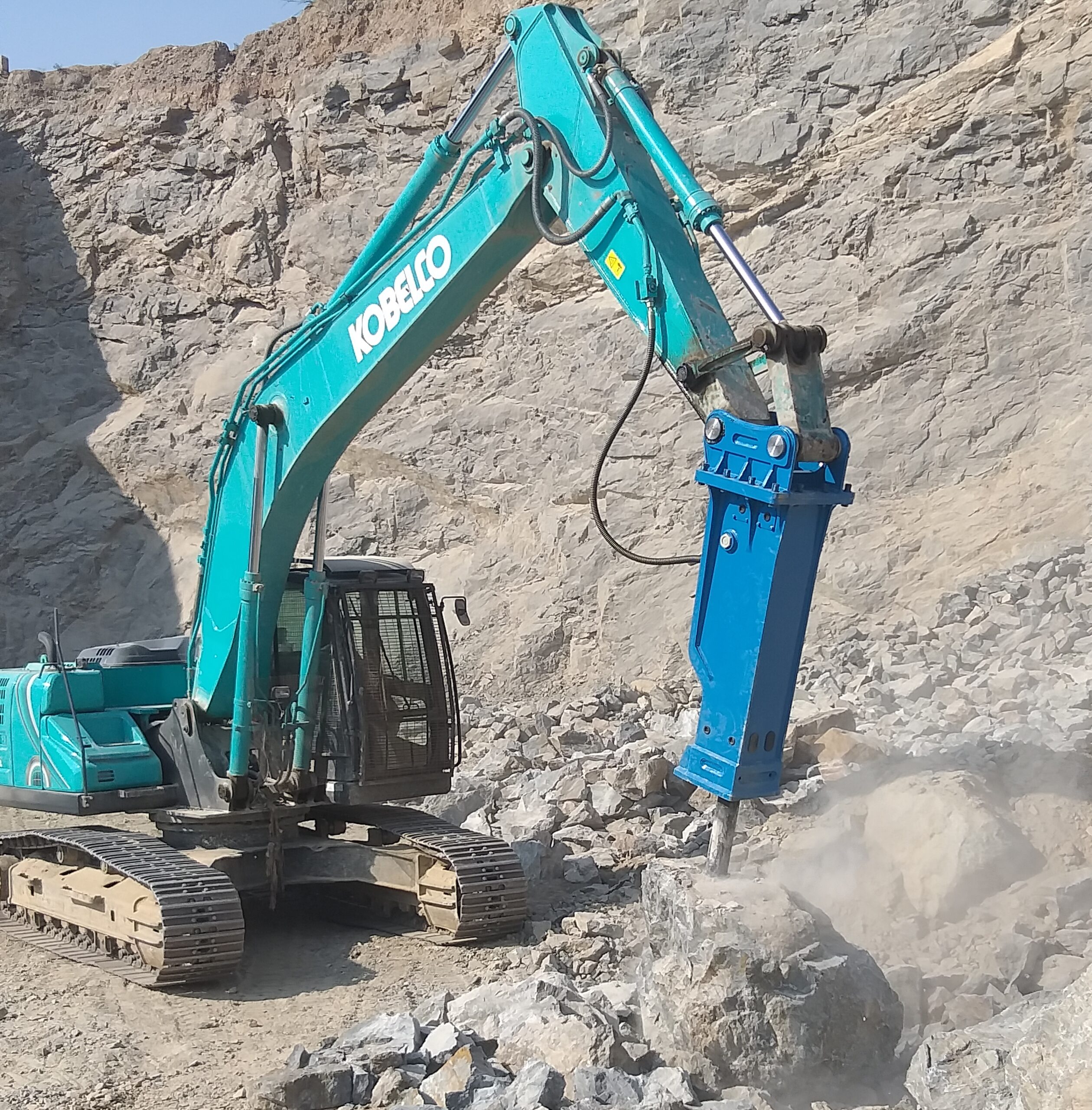

	4,000	TOP205J	3968	5.3	360-430 / 500-560	42-53	2030-2610	18-26	40,000-57,000
	5500	TOP270B	5380	5.5	400-500 / 600-700	47-63	2180-2610	20-30	44,000-66,000
	7,500	TOP300J	5952	5.9	370-420 / 450-530	58-74	2320-2465	24-36	53,000-7,9000
	9,000	TOP350J	6945	6.1	300-350	74-82	2320-2610	28-45	62,000-99,000

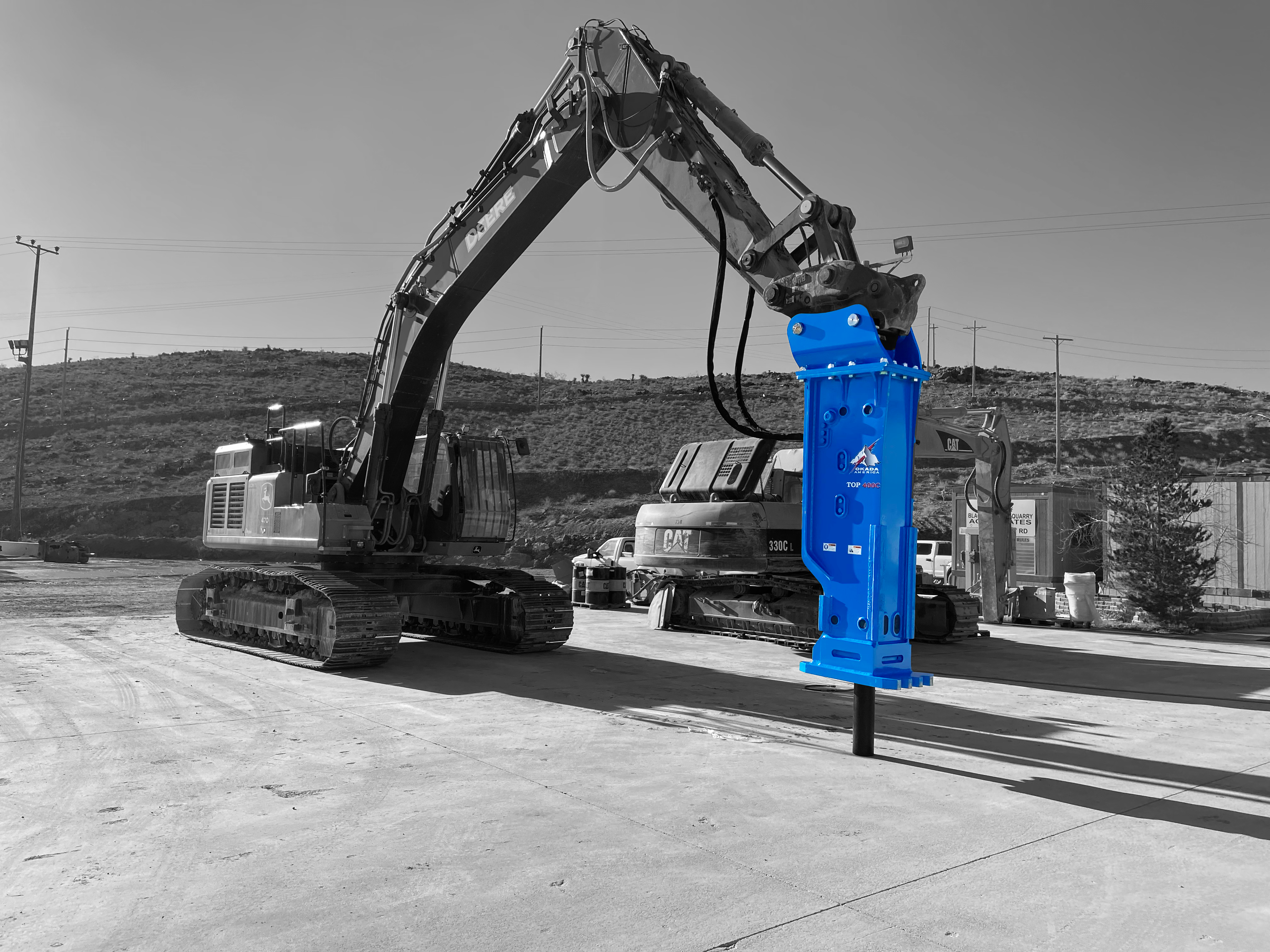

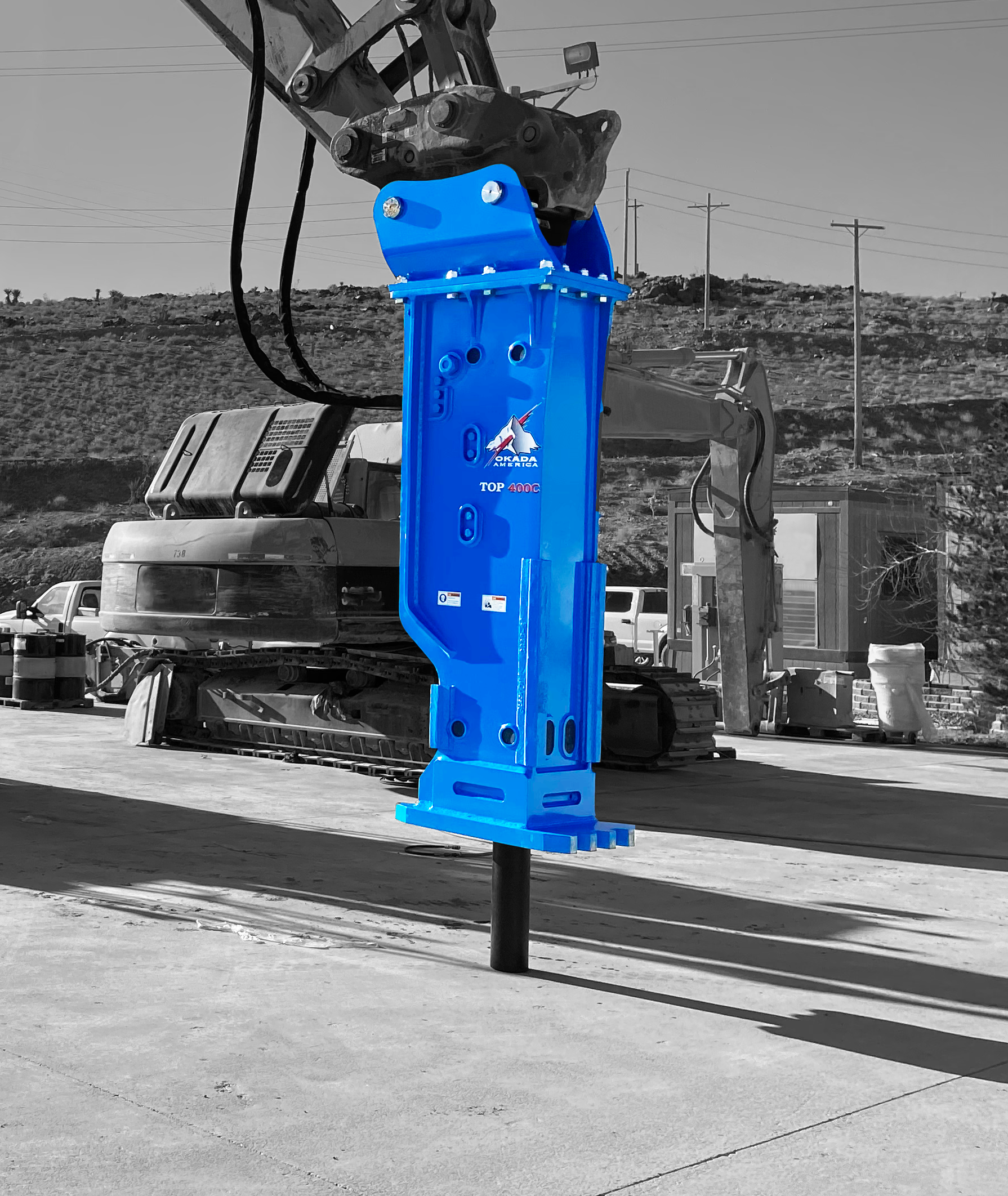

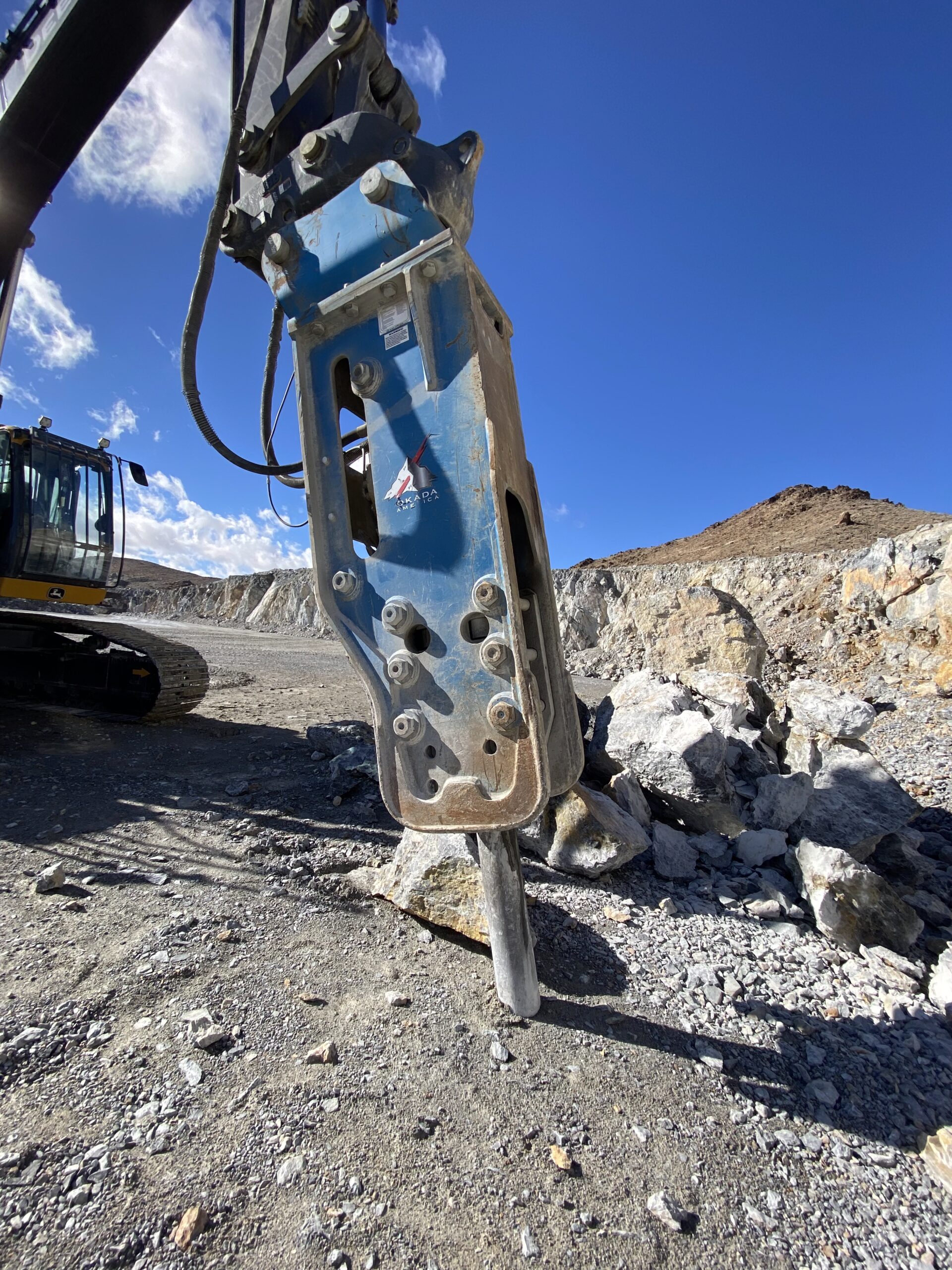

	12,000	TOP400J	9350	6.7	250-320	82-95	2320-2610	40-60	88,000-132,000
	15,000	TOP800	12350	7.4	260-360	79-101	1990-2610	60-80	132,000-176,000

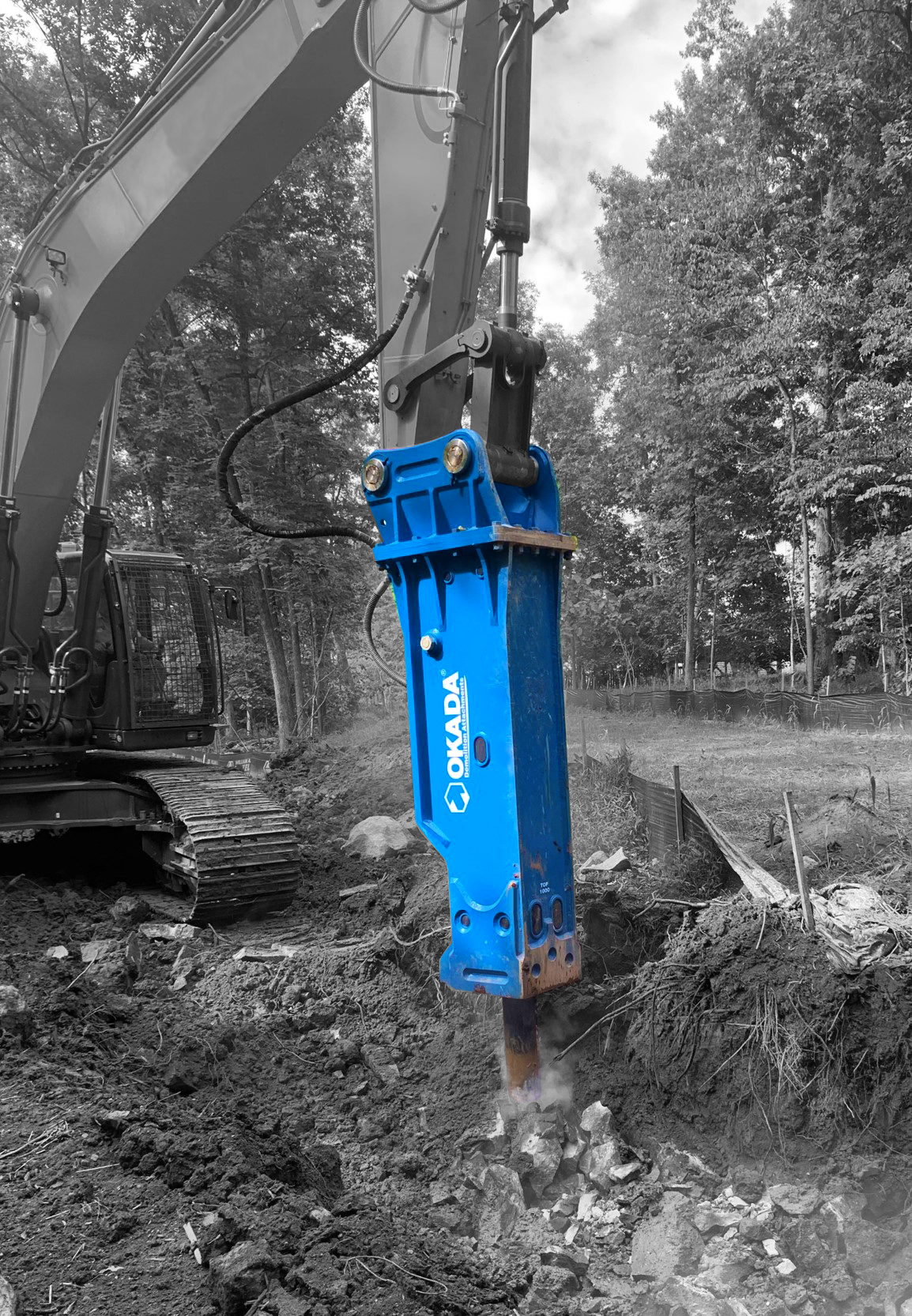

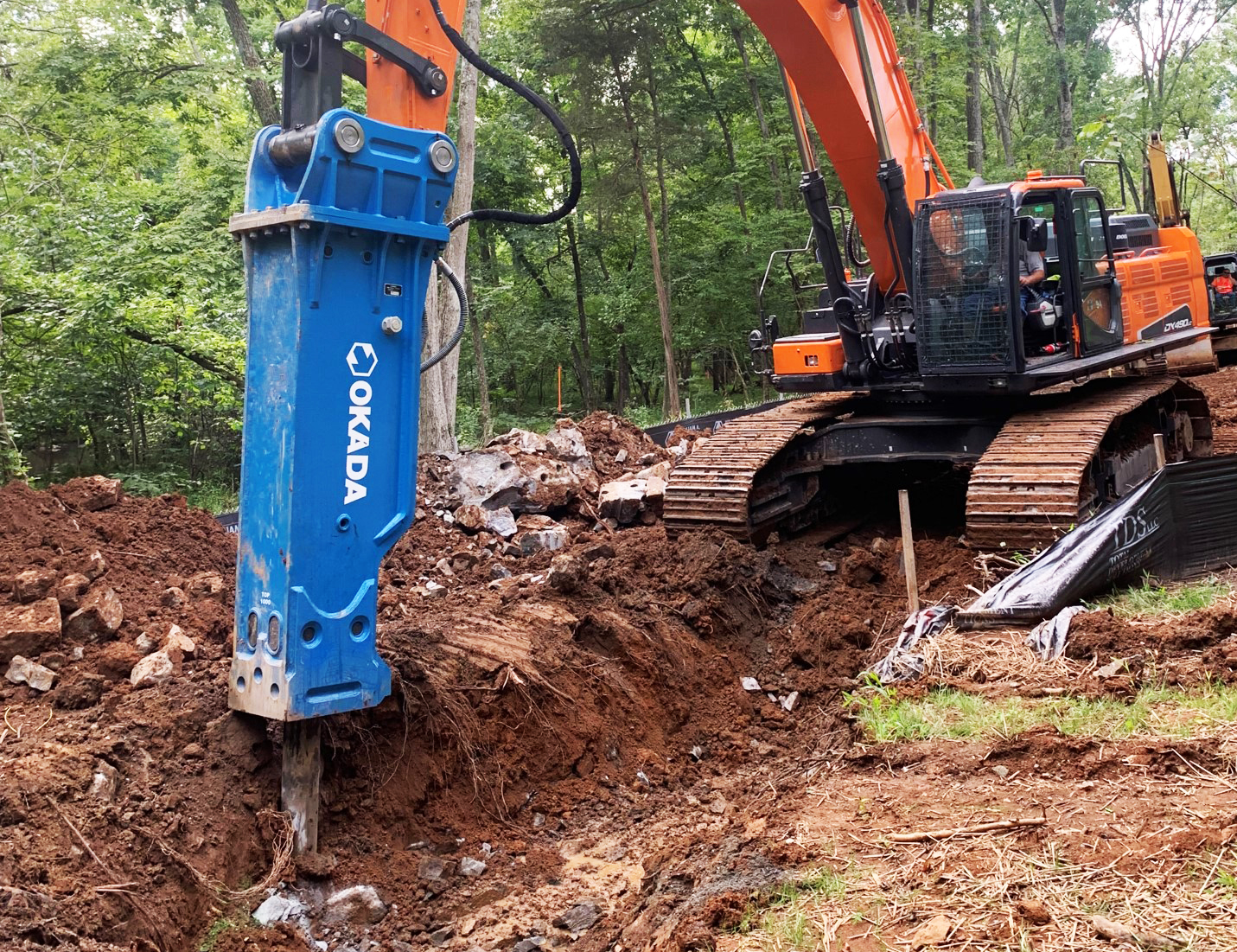

	17,000	TOP1000J	15763	8.3	200-280	111-132	2610-3050	75-120	165,000-265,000
	* Weight includes Upper Mounting Bracket
	** Oil flow at no load
