Okada TSWB Series Primary Crusher
Main Specs
| Brand | Okada |
| Make | TSWB Series |
| Model | 620V, 950V, 1100V, 1400V, 1600V, 1900V, 2200V, 2400V |
Highlights
- Standard speed valve for shorter cycle times
- Built-in pressure relief valve
- Standard flat-mount design
- 360 hydraulic rotation
- High pressure twin cylinders with cylinder rod covers (except for TSWB 2200V)
- Seamless casting components
- Custom tooth design for faster material fractioning
- Large jaw opening for increased production
- Reversible rebar cutting blade
- Primary demolition:
- Reinforced concrete constructions
- High-reach demolition
- Foundation demolition
- Single-step recycling
Additional Information
- Description

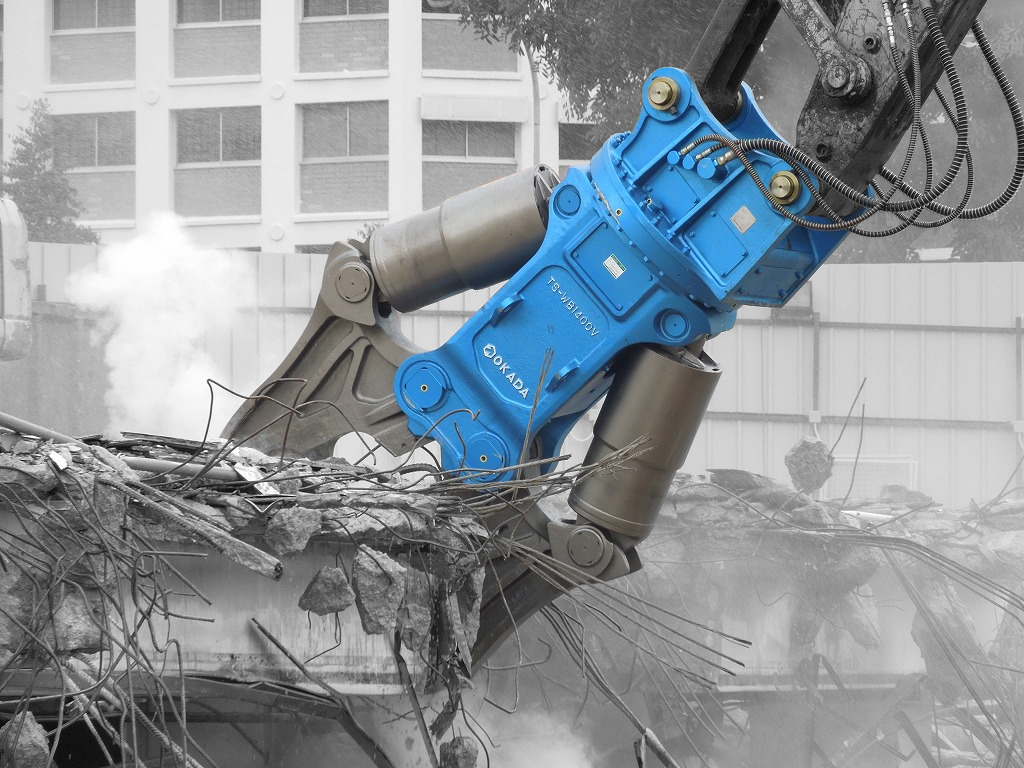

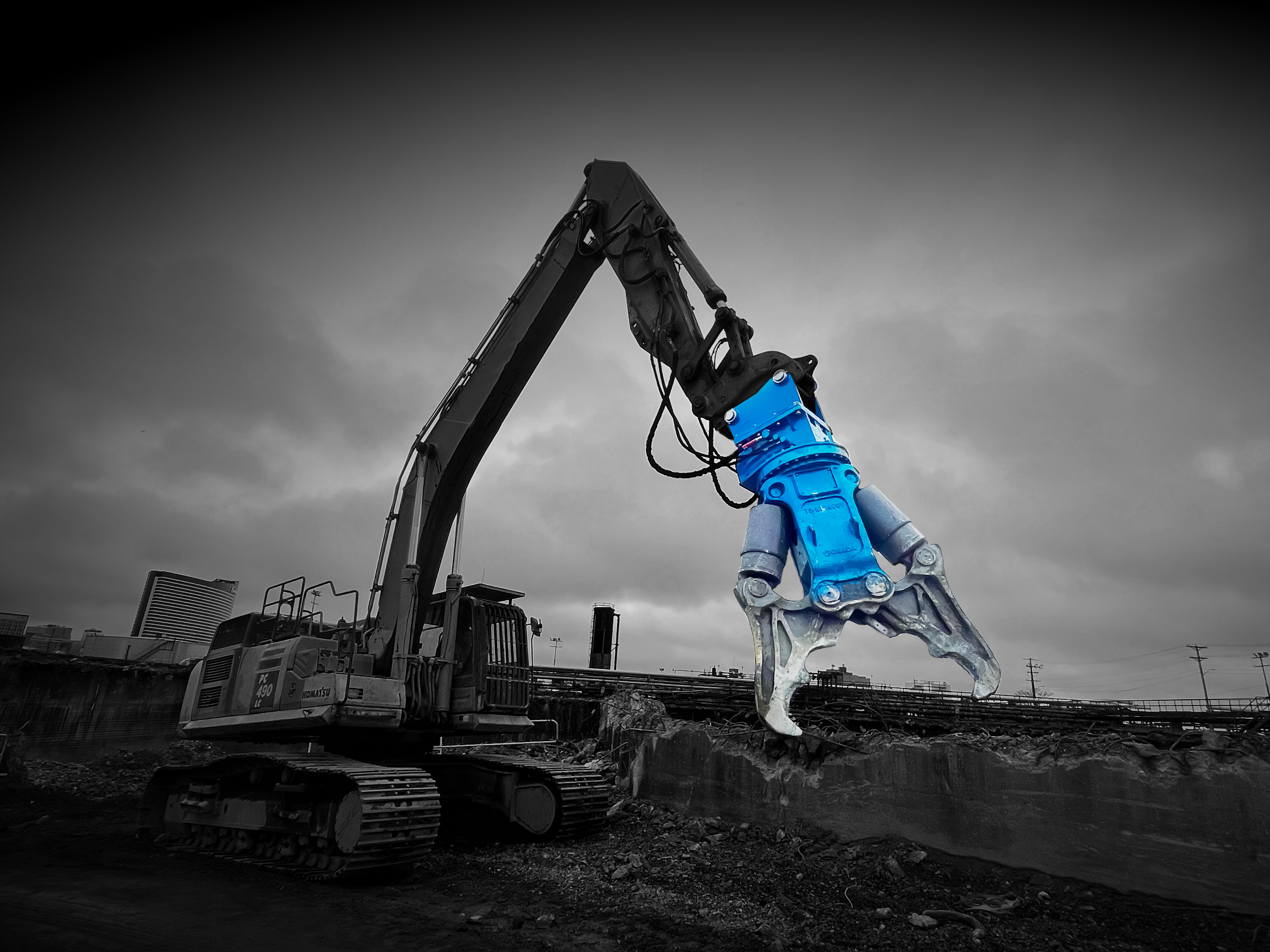

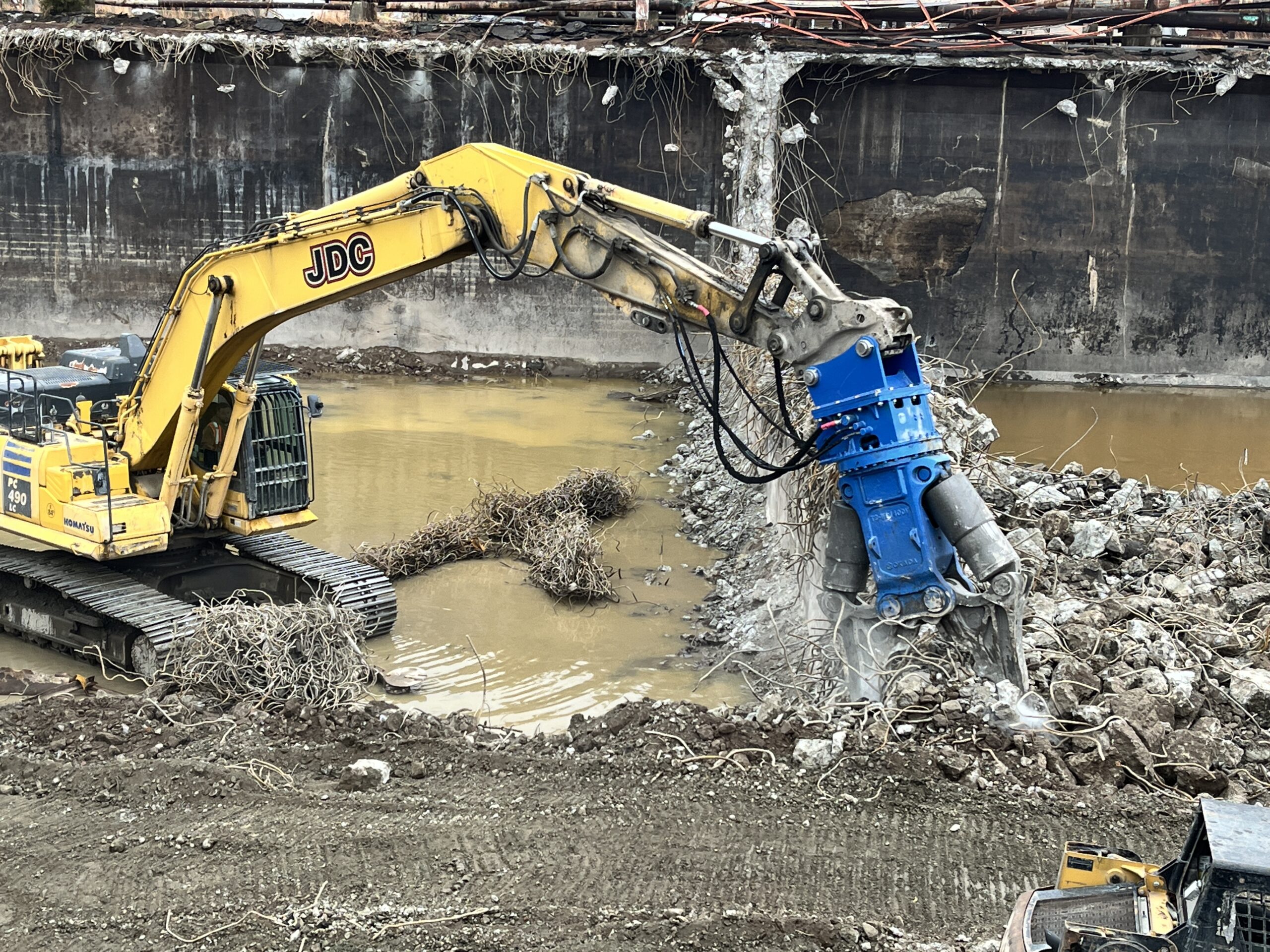

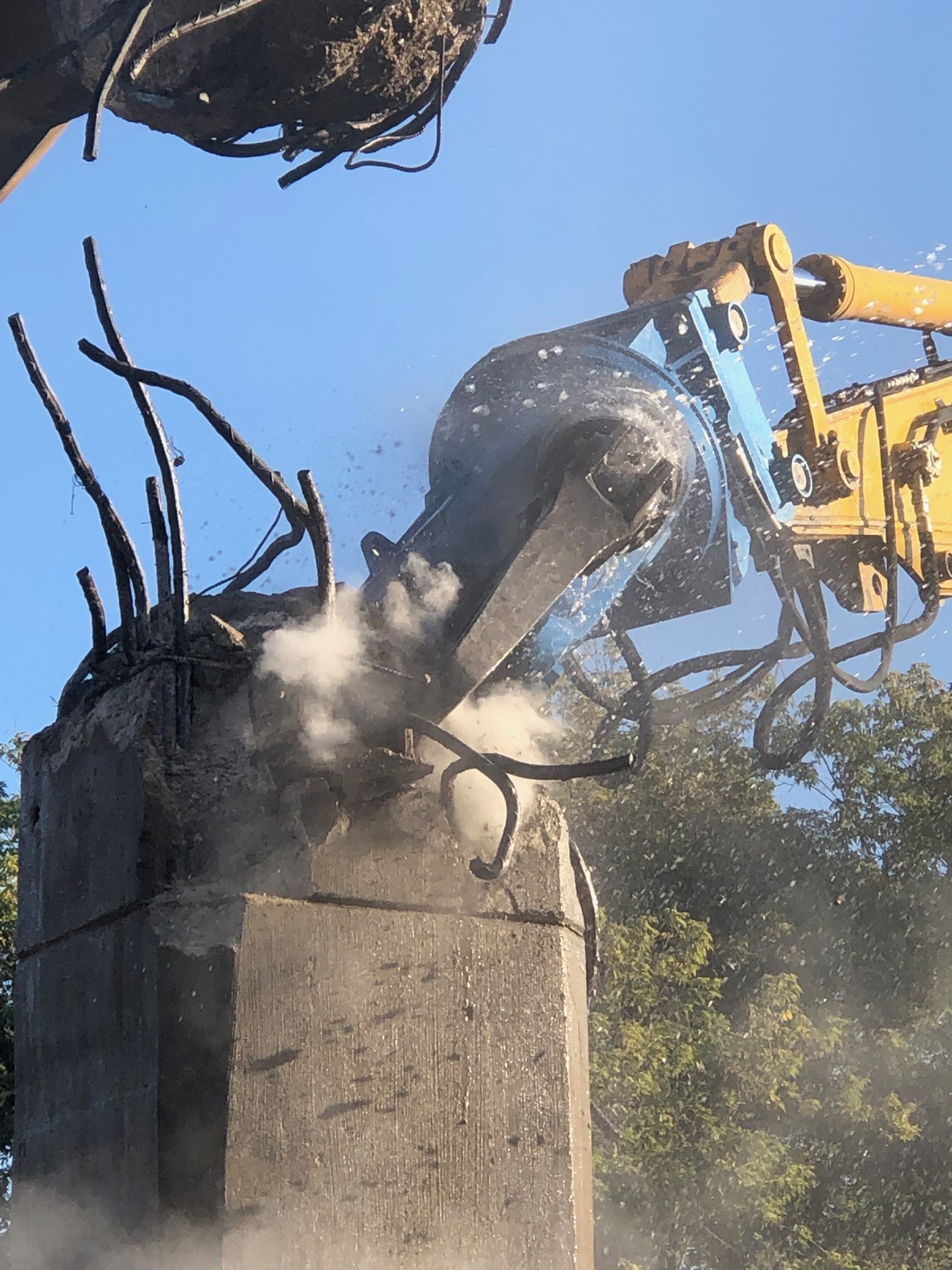

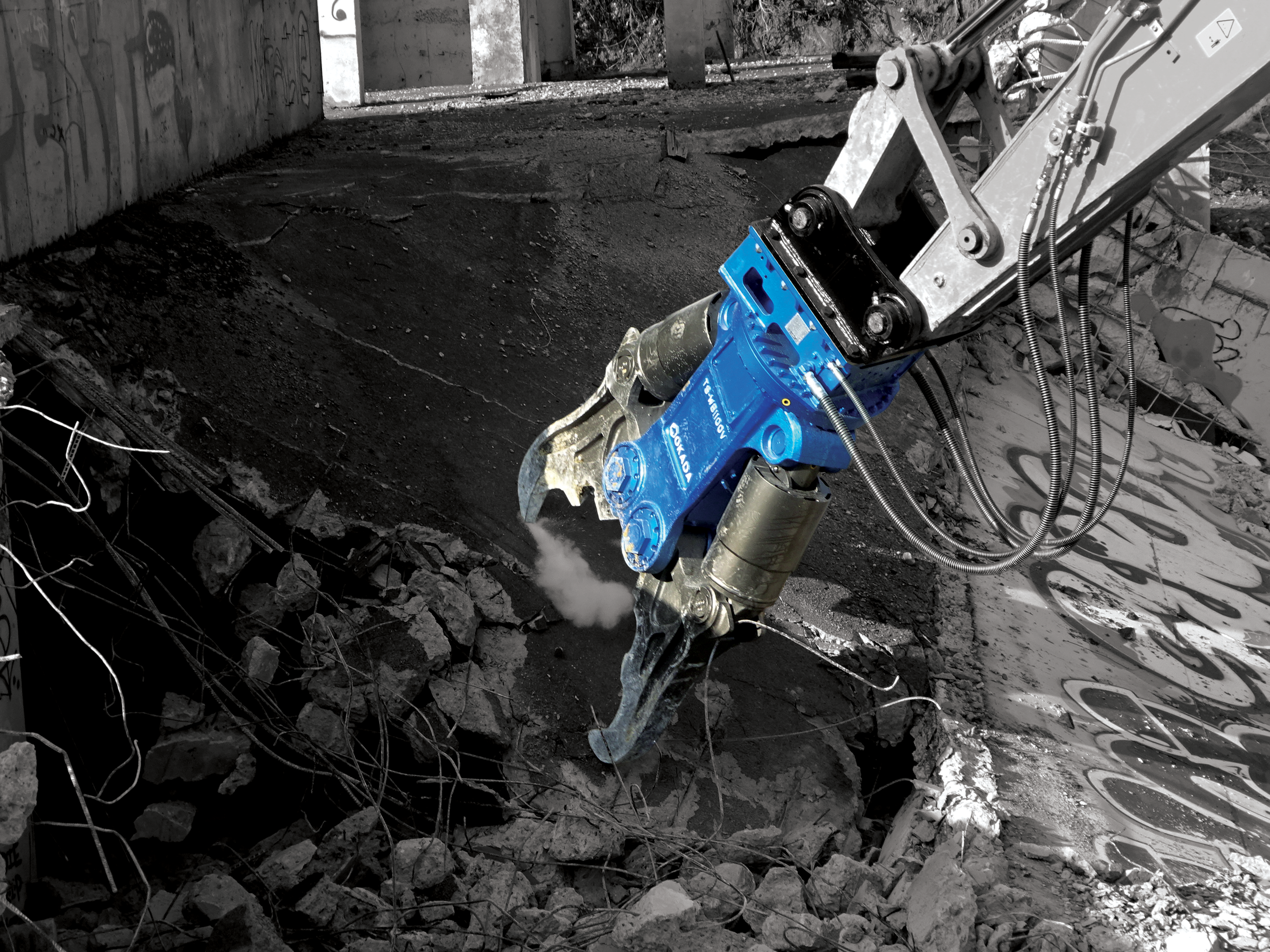

Okada’s wide product range of TS-WB concrete crushers give you a concrete solution for your carrier. Unlike some hydraulic breakers, TS-WB crushers do not emit noise or vibration and are environmentally friendly and safe.
| TSW CRUSHERS - 360° rotation | |||||||||||
|

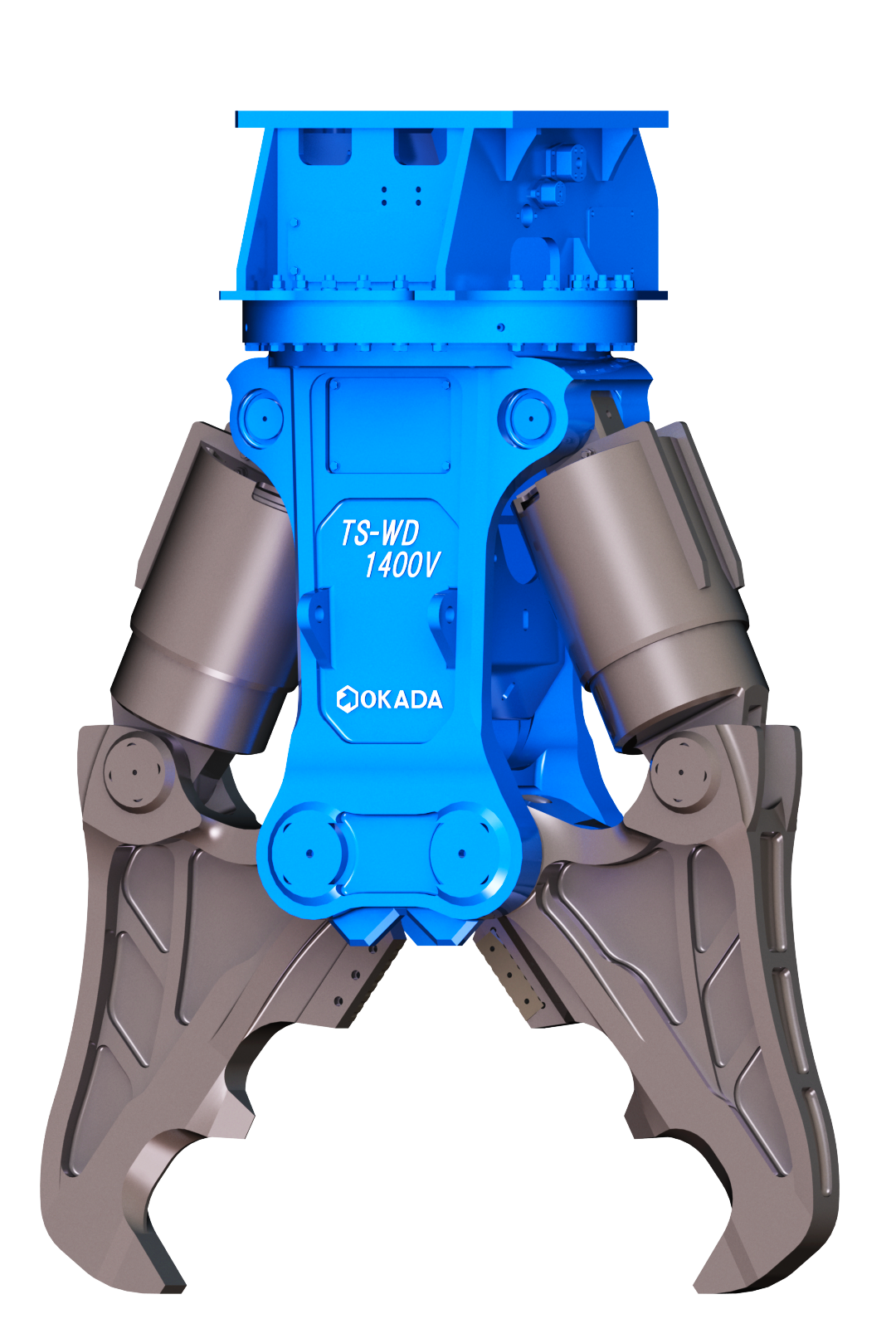

All Okada TS-WB concrete crushers are built from cast steel, providing exceptional strength without added weight. The cast steel body helps prevent cracking under stress while keeping the attachment lighter for better carrier efficiency. This design ensures long-term durability and reliable performance, even in demanding demolition environments. | ||||||||||
| Model | Weight* (lbs) | Jaw Opening (in) | Jaw Depth (in) | Reach** (in) | Oil Flow (gpm) | Operating Pressure
(psi)
H32 |
Carrier Range (lbs) | ||||
| TSWB950V | 4,090 | 37 | 26 | 6' 6" | 53 | 4351 | 26,000-55,000 | ||||
| TSWB1100V | 5,950 | 43 | 30 | 7' 8" | 106 | 4351 | 44,000-77,000 | ||||
| TSWB1400V | 11,035 | 55 | 34 | 8' 10" | 132 | 4351 | 66,000-110,000 | ||||
| TSWB1700V | 12,726 | 67 | 32 | 9' 5" | 159 | 4351 | 88,000-154,000 | ||||
| TSWB1900V | 17,040 | 75 | 35 | 8' 10" | 185 | 4351 | 154,000-220,000 | ||||
