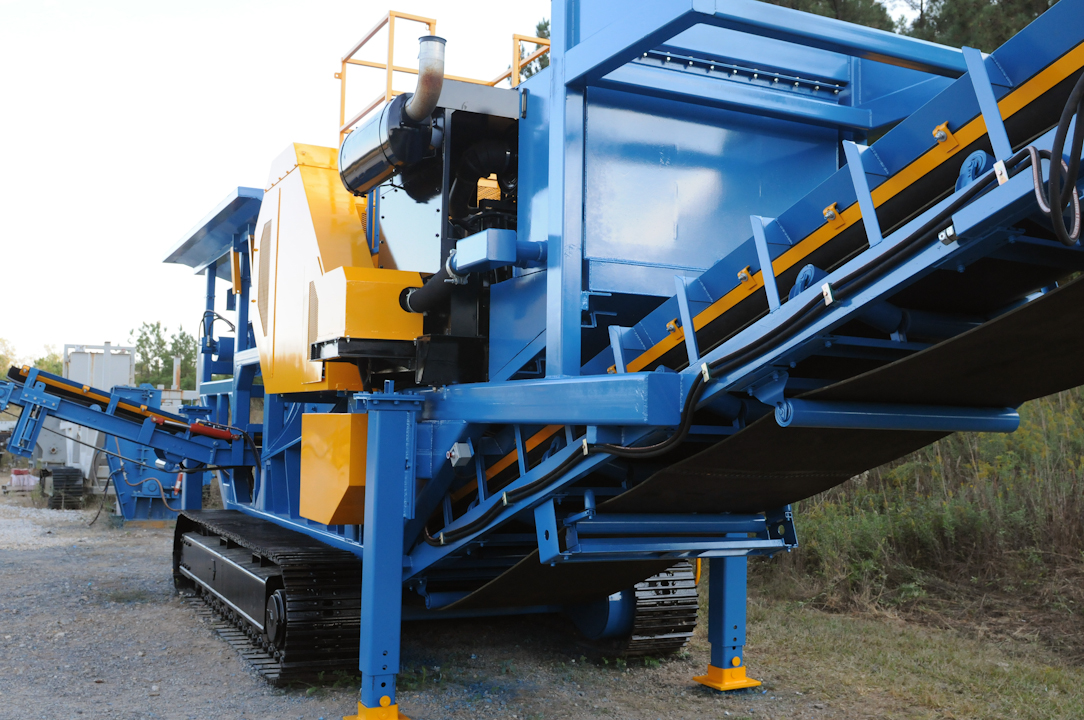

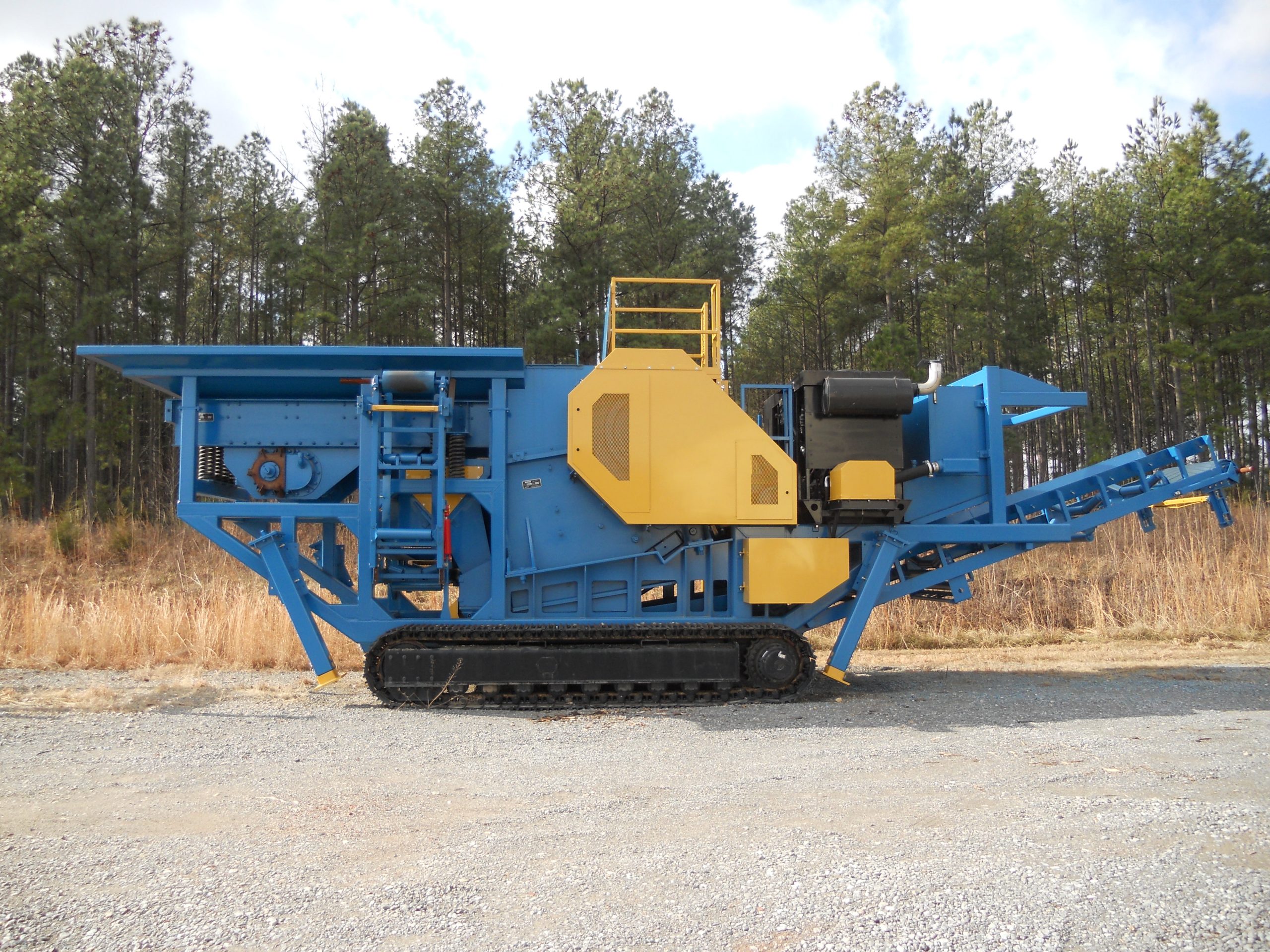

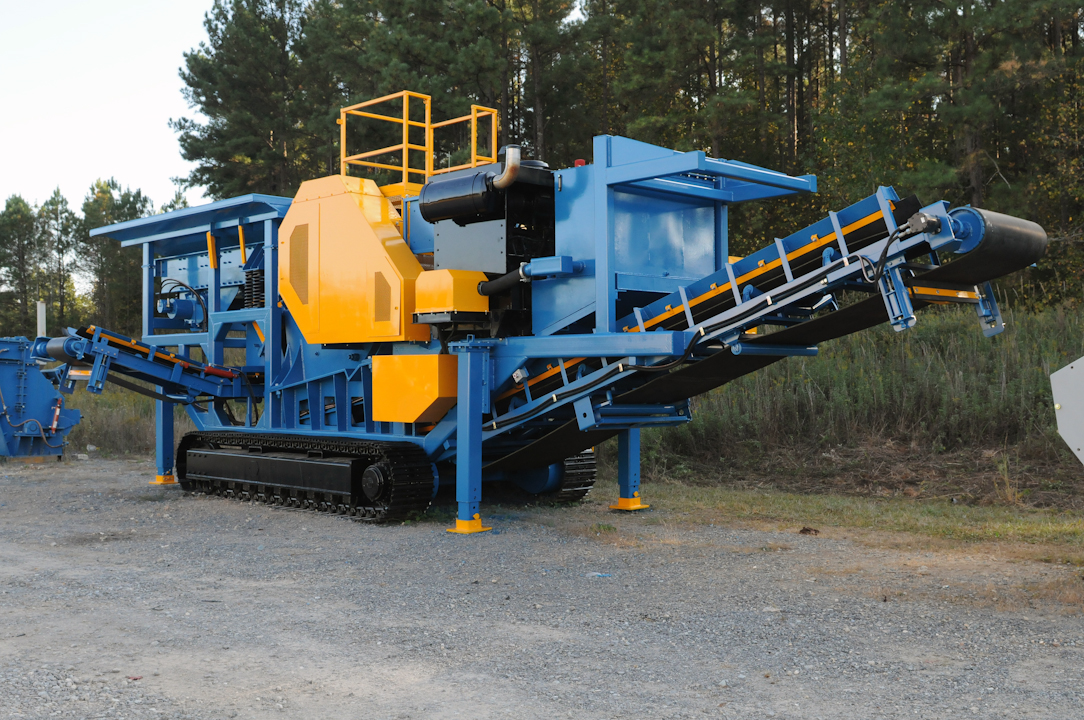

Track Mounted Mobile Jaw Plants

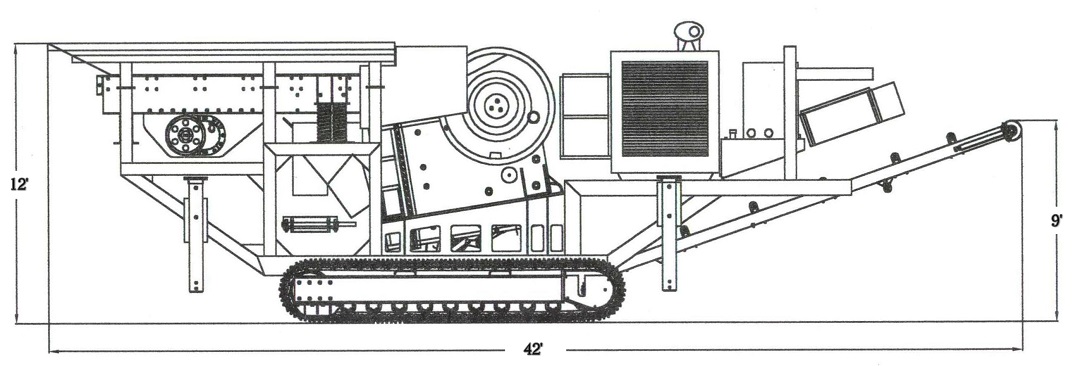

CK3242

• GIGANTIC 32″ x 42″ FEED OPENING Jaw Crusher: Complete with V-Belt drives, and adjustable motor base. The jaw crusher has separate Hydraulic Power pack which allows for simple hydraulic adjustment.

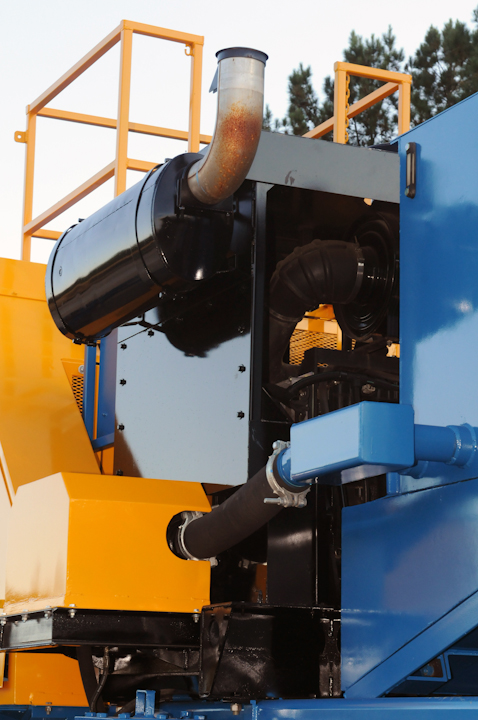

• A “TURN KEY DESIGN” INCLUDES A NEW approx. 350 HP JOHN DEERE(OR EQUIVALENT) DIESEL POWER PLANT with HEAVY DUTY HYDRAULIC POWER PACK. “NO CLUTCH DESIGN”.

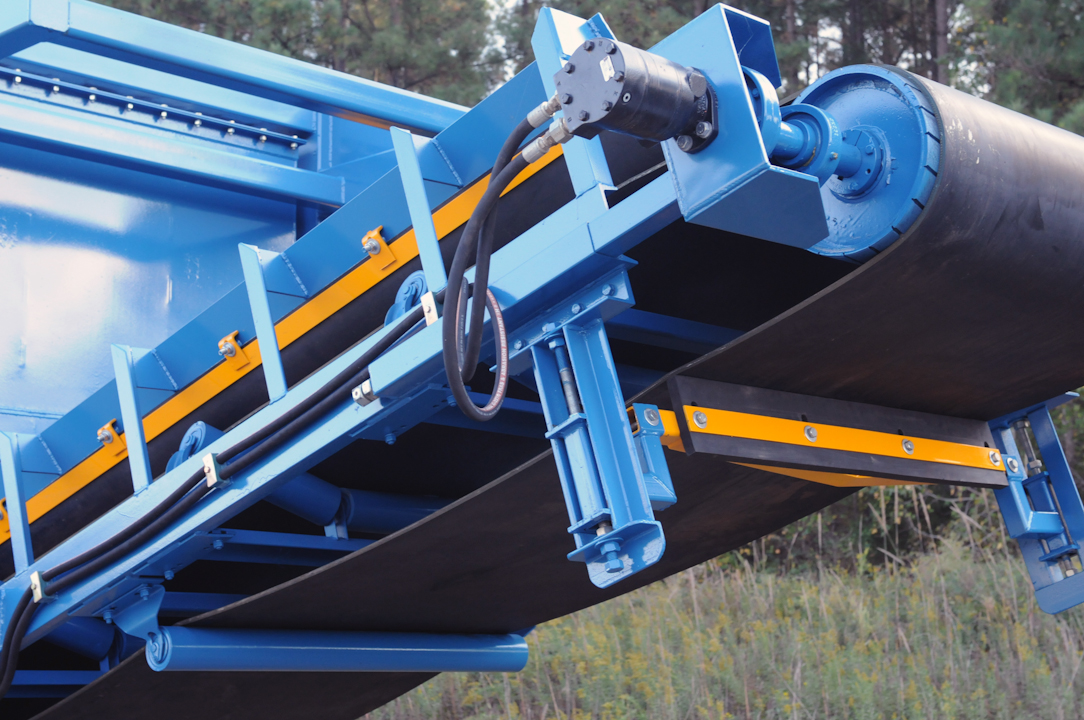

• 42″ X approx. 25′ Under Crusher front discharge conveyor, complete with hydraulic power.

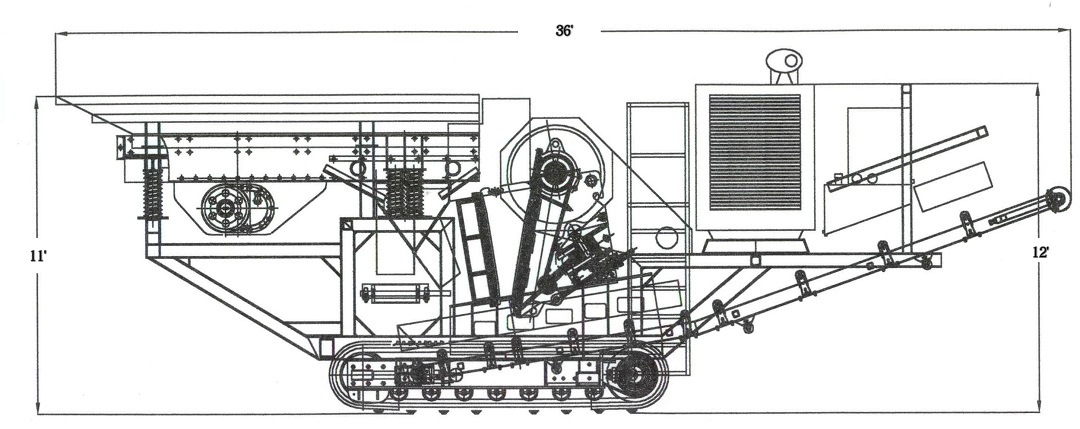

CK2236

• 22″ x 36″ FEED OPENING Jaw Crusher: Complete with V-Belt drives, and adjustable motor base. The jaw crusher has separate Hydraulic Power pack which allows for simple hydraulic adjustment.
• A “TURN KEY DESIGN” INCLUDES A NEW approx. 250 HP JOHN DEERE (OR EQUIVALENT) DIESEL POWER PLANT with HEAVY DUTY HYDRAULIC POWER PACK. “NO CLUTCH DESIGN”.
• 30″ X approx. 25′ Under Crusher front discharge conveyor, complete with hydraulic power.

Standard Features

• A bolt on HEAVY DUTY ROCK BOX is mounted over the jaw. It features a “hinged” cover that allows operators to open the cover for visual inspections without removing the rock box.
• “RADIO REMOTE CONTROL OPERATION.” VARIABLE SPEED FEEDER, SIDE DISCHARGE CONVEYOR, FRONT DISCHARGE CONVEYOR, TRACK CONTROL AND CRUSHER OPERATION ALL OPERATE BY REMOTE!!!
• COMPLETE Hydraulic system with reservoir. Hydraulics power any and all hydraulic cylinders and all hydraulic components
  including the t rack drive system.
• TRACK DRIVE SYSTEM hydraulically controlled from the RADIO REMOTE CONTROL.

• 38″ X 12′ Vibrating Grizzly Feeder: Hydraulic motor with drive attached to shaft on feeder. BYPASS CHUTE UNDER GRIZZLY FEEDER with UNIQUE “ANTI-CLOGGING” FEATURE.
• HEAVY DUTY ROCK HOPPER made from Plate STEEL. Low profile design mounted independent of feeder AND REMOVABLE. Heavy Duty supports and cross bracing.
• CATWALKS, LADDER(s), OPERATOR’S PLATFORM AND GUARDING.
• One Primer Coat & Two Finish Coats of Paint
• Primed & Painted with Rust Inhibiting Paint.

Standard Features Available on CK3242 Which Are Optional on CK2236

• Under Grizzly BYPASS CHUTE w / FLOP GATE. Gate can be opened or closed to allow material to fall onto the side conveyor or the front conveyor.

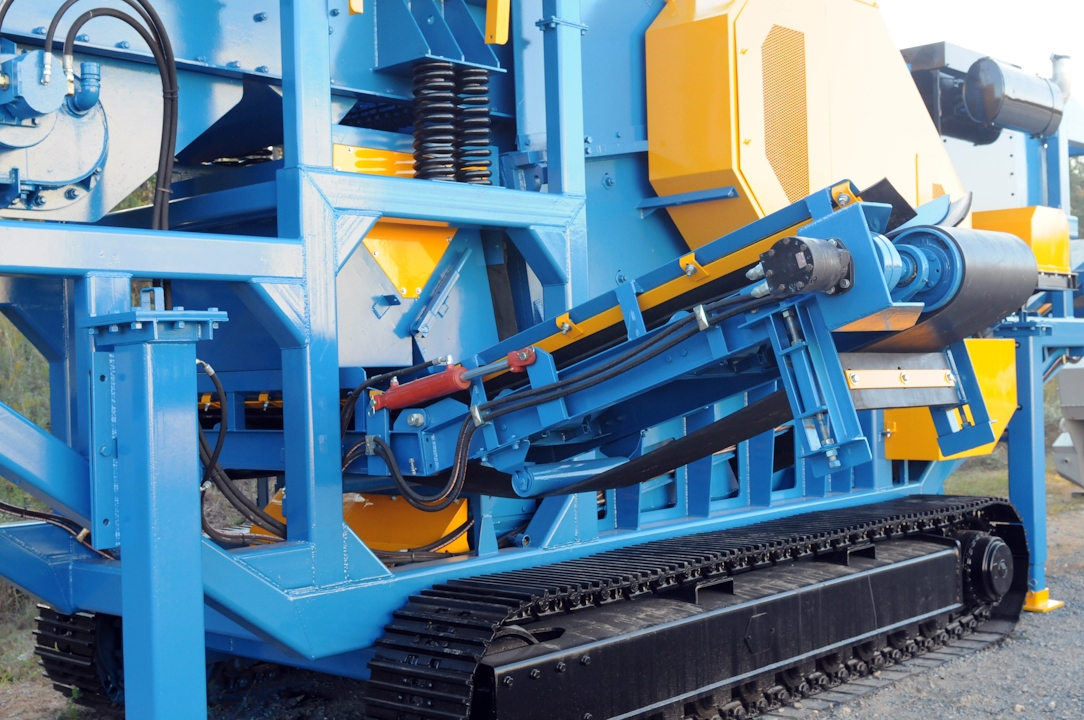

• Under Grizzly Fines side delivery conveyor. Hydraulically folds for transport.

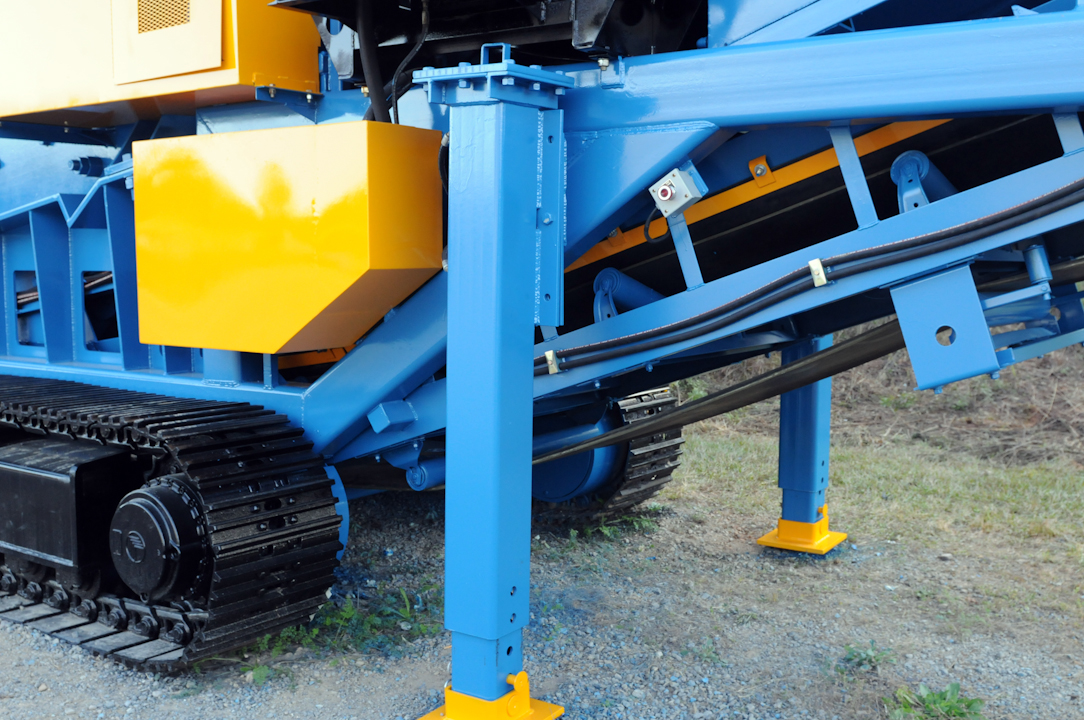

• (4) FOUR Heavy Duty Hydraulic Leveling /Stabilizing Legs. Legs are hydraulically operated & feature unique swivel design for tracking or transport. The legs are bolted onto the main frame and include feet / pads that are pinned onto the bottom of each. They can be pinned in place at the desired height.

Available Options

• New Cross Belt Self Cleaning Magnet w / hydraulic motor, separate valve control, fully plumbed and mounted over main conveyor (designed to handle re-bar of various sizes and general metallic debris from concrete recycle material).

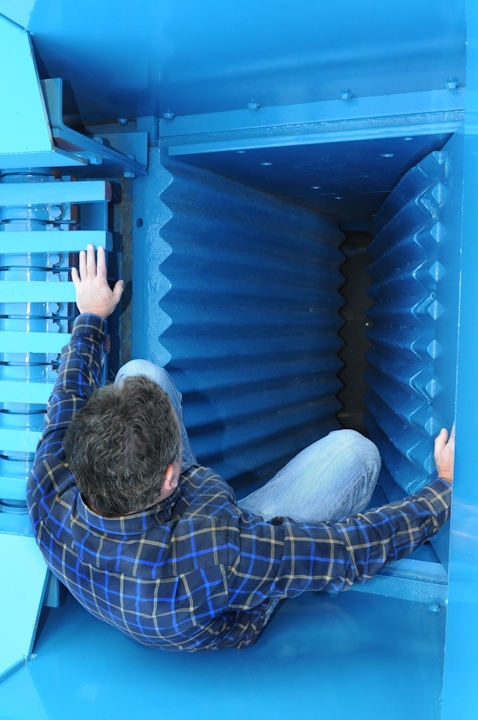

• Jaw can be REVERSED for ease of clearing crushing chamber.
