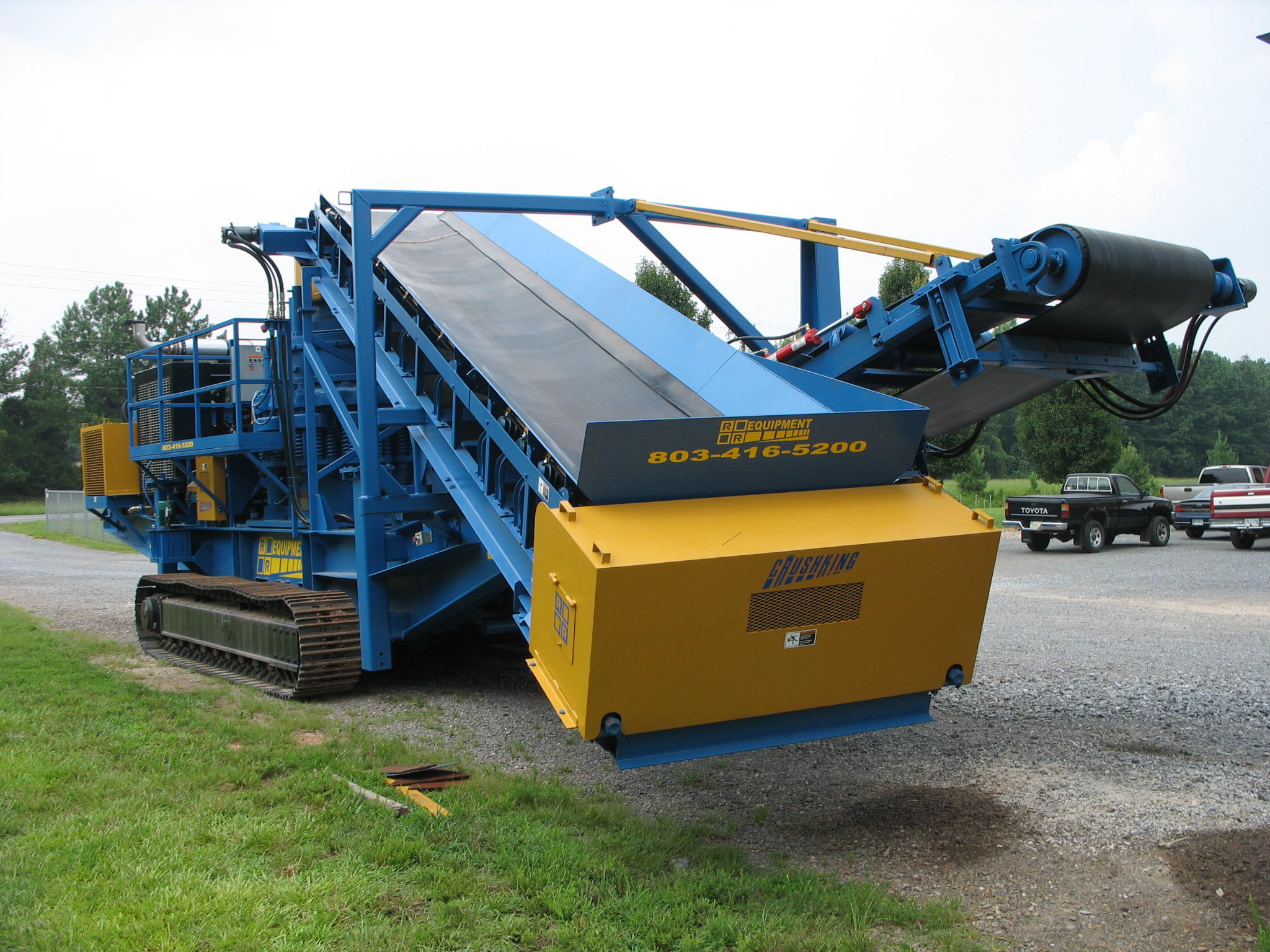

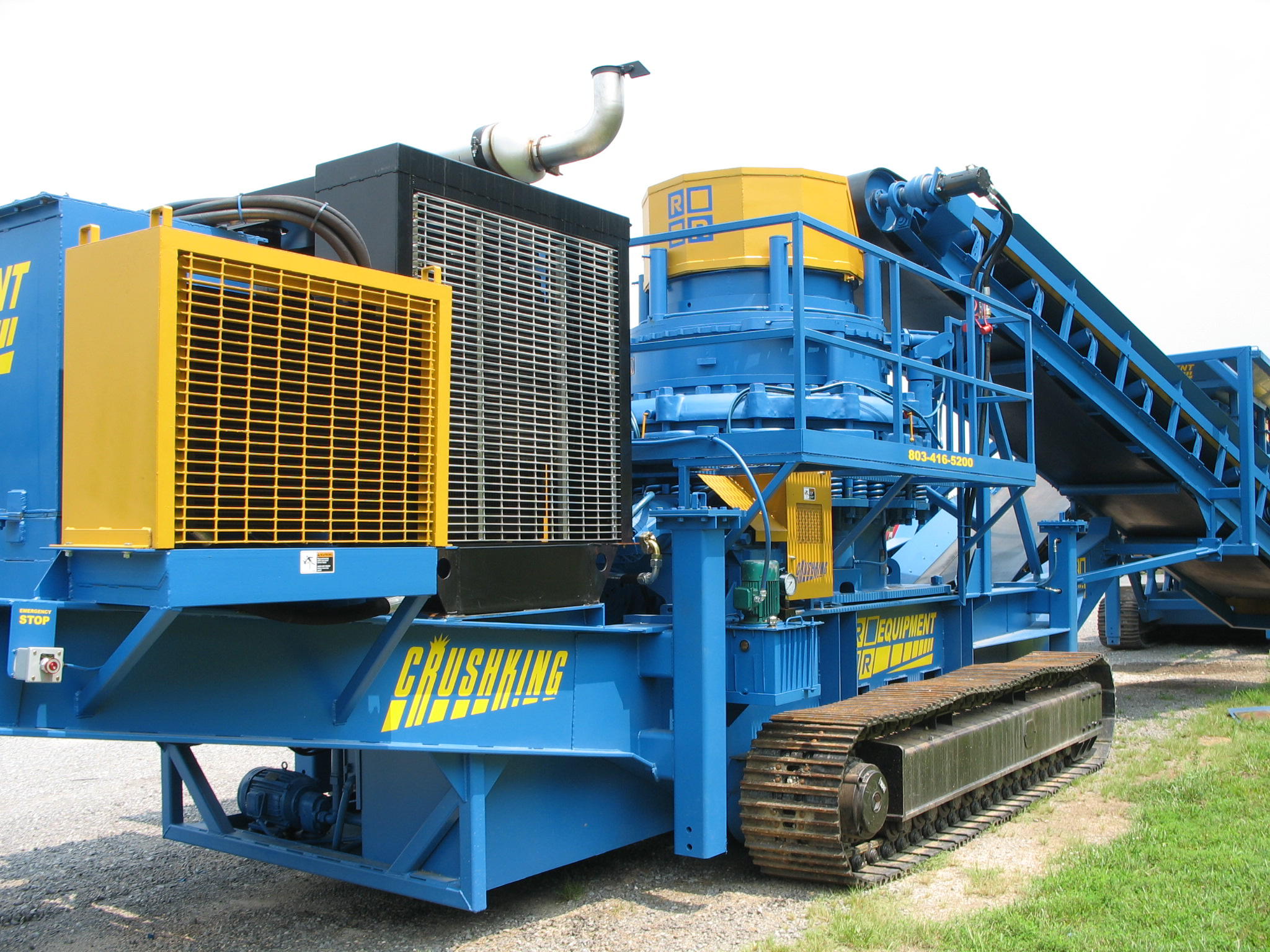

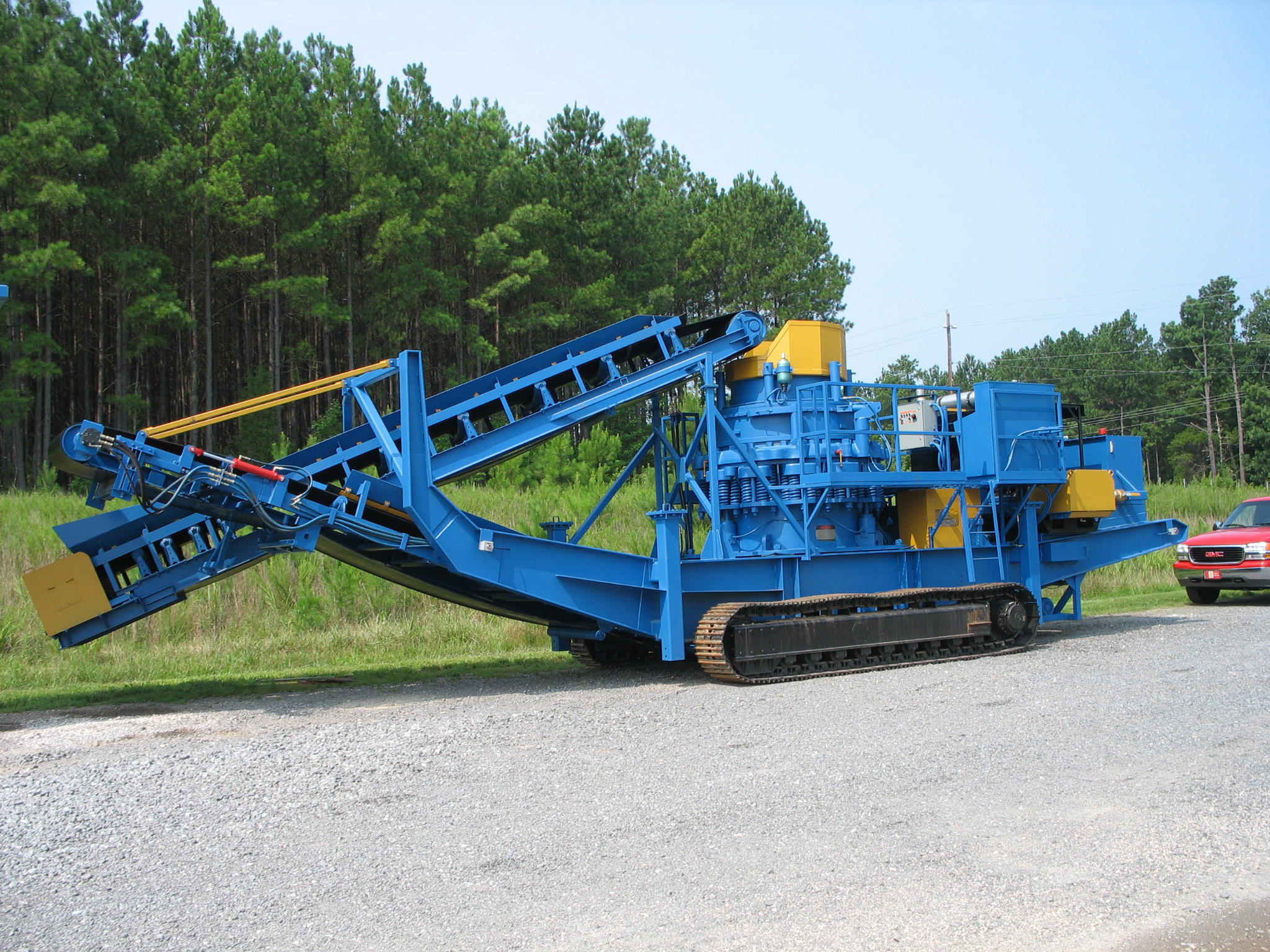

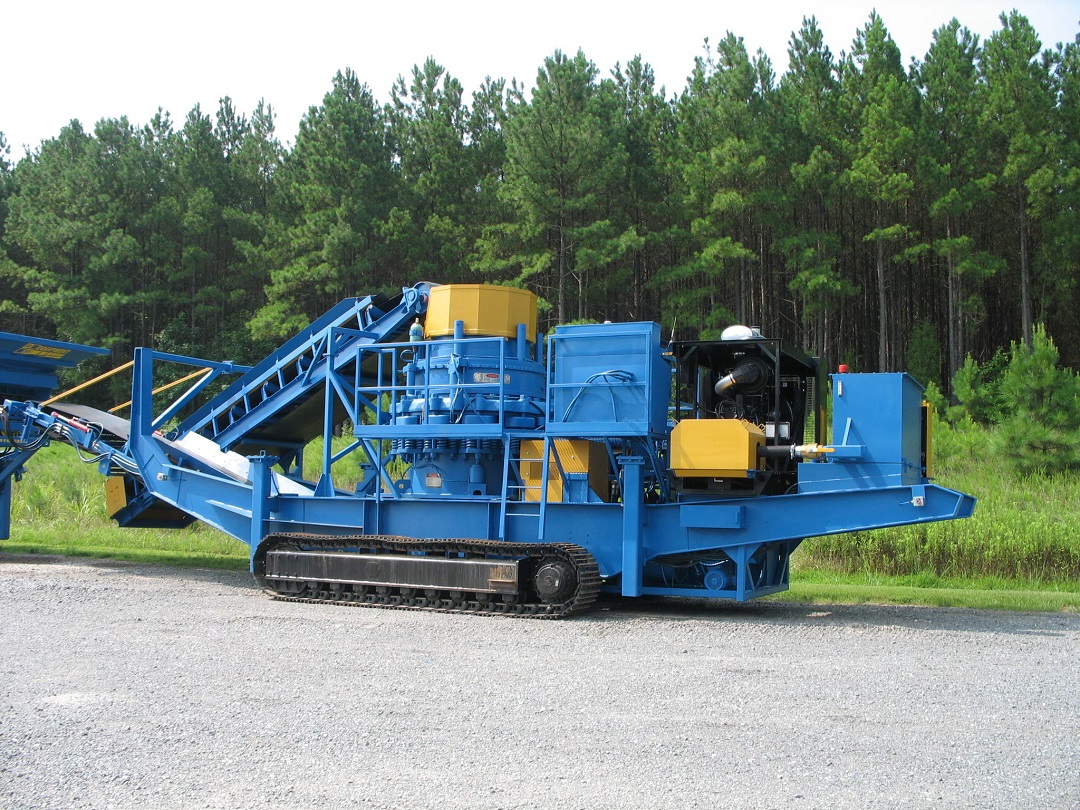

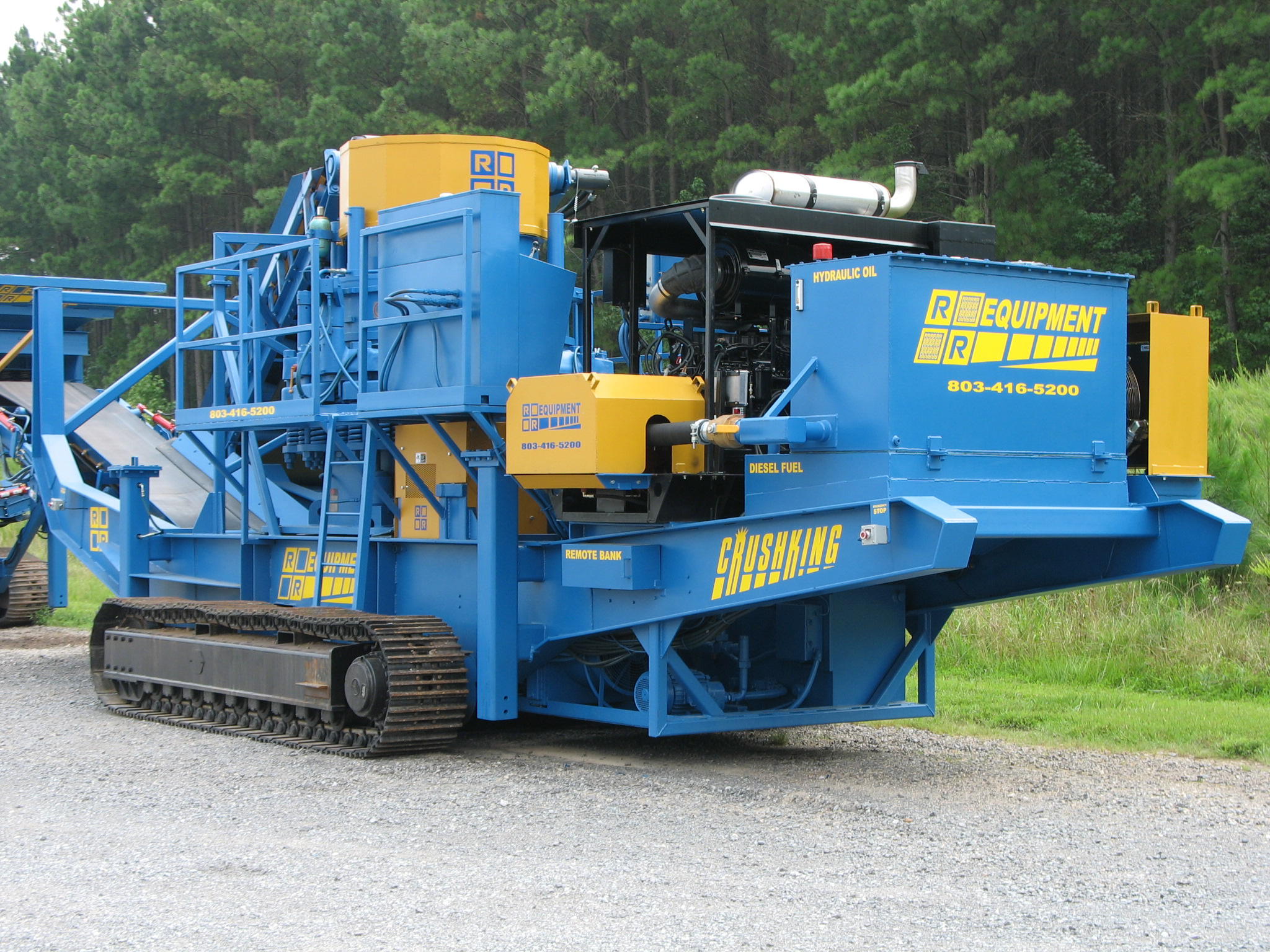

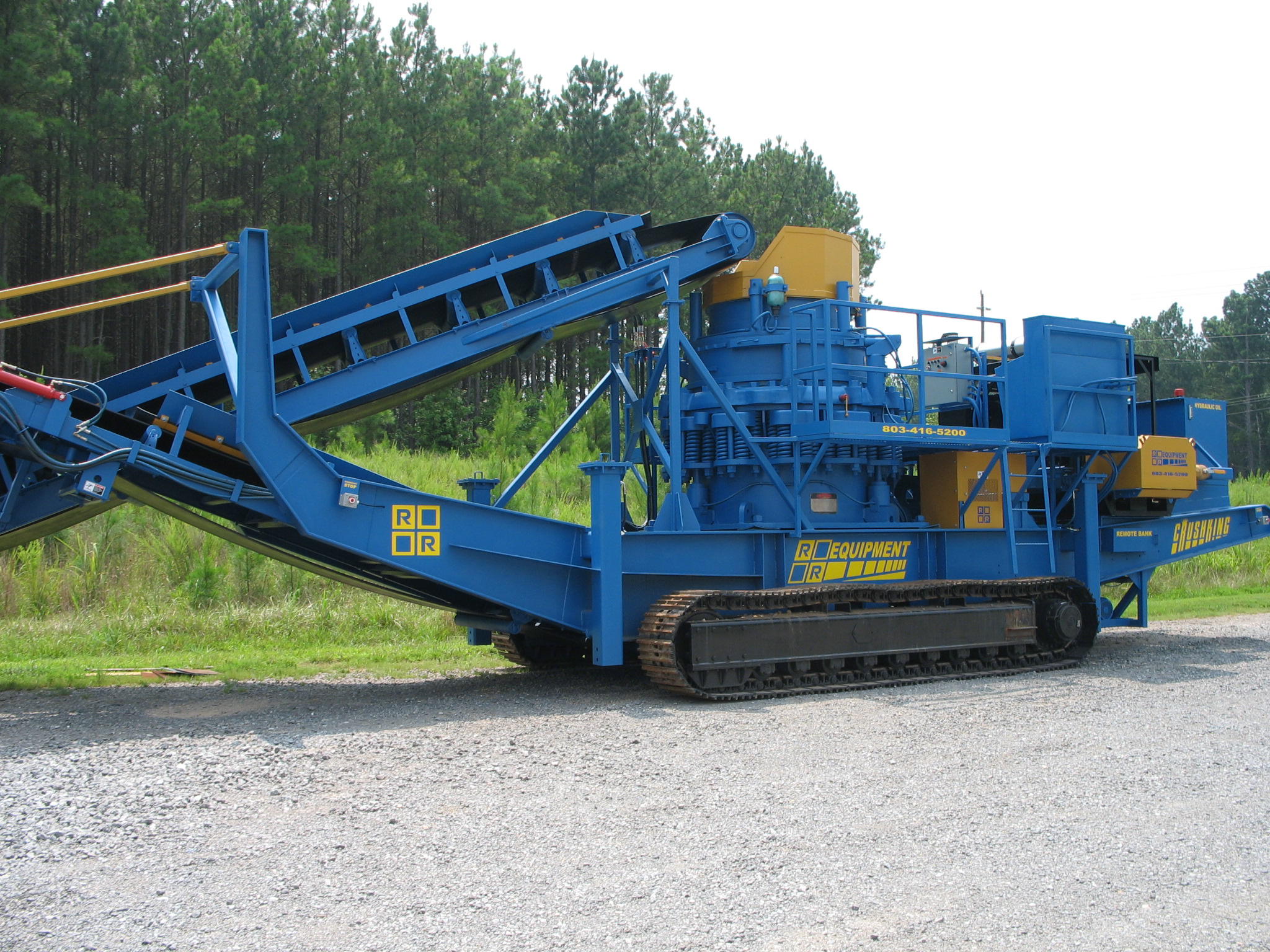

Mobile/Track Mounted CRUSHKING® Cone Plants
- 36″ & 54″ (4 1/4′) Sizes Available
- Open Circuit Design Features Belt Feeder In Place Of Screen
- John Deere Diesel
- American Hydraulics
- Highly Mobile
- Low Profile Design Allows Easy Over The Road Transport
- Crushes Hard Rock Or Recycles
- Adjustable Discharge Settings
- Produces Two Finished Products
- On Board Screen, Allows Material To Be Screened Prior To Entering Cone
- Screen Maximizes Efficiency By Limiting What Material Goes Into Cone

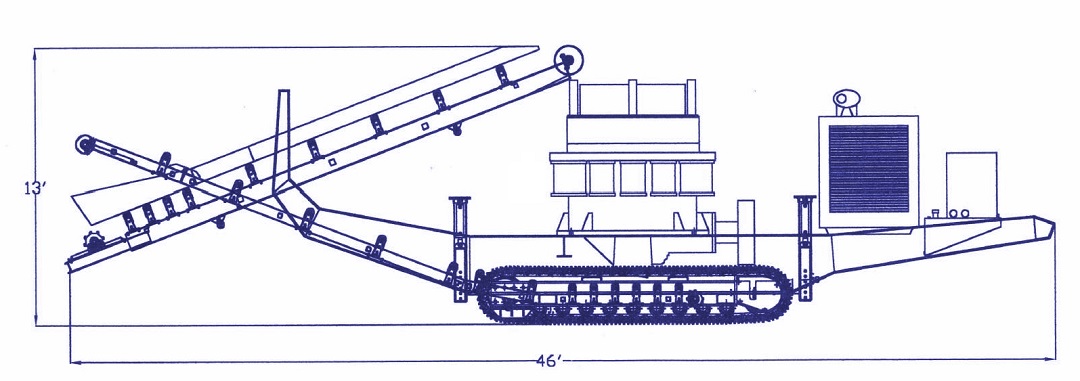

CKCP4M
- 4 1/4” Cone Crusher with All Hydraulic Drive (No Clutch).
- 36” X approx. 20’ Under Crusher PRODUCT Conveyor complete with hydraulic drives
OPTIONAL
- 36” X approx. 15’ FEED Conveyor complete with hydraulic drives. Low profile receiving hopper apprx. 12’ long x 7’ wide mounted over feed conveyor. Feed conveyor will be mounted on an angle to allow for lower feed height.

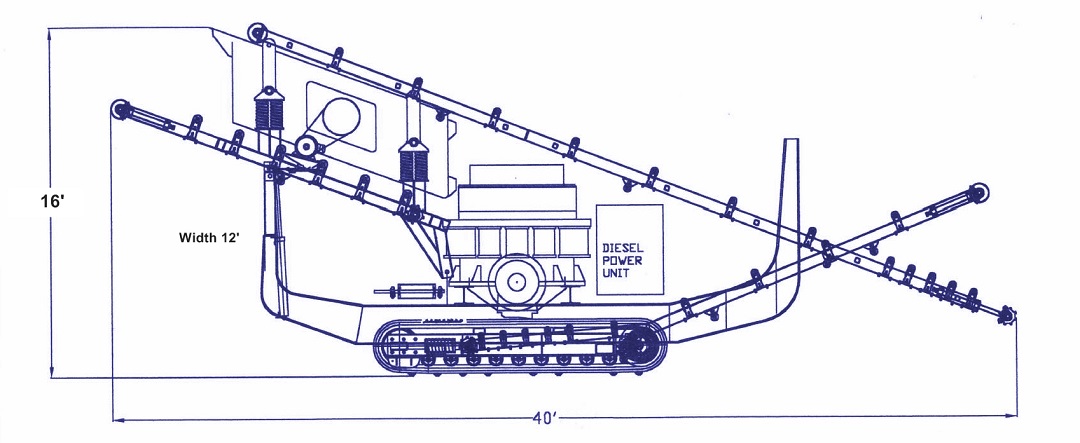

CKCP3M
- 3’ Cone Crusher with All Hydraulic Drive (No Clutch!)
- 30” X approx. 20’ Under Crusher PRODUCT Conveyor complete with hydraulic drives.
OPTIONAL
- 30” X approx. 15’ FEED Conveyor complete with hydraulic drives. Low profile receiving hopper approx.. 12’ long x 7’ wide mounted over feed conveyor. Feed conveyor will be mounted on an angle to allow for lower feed height.
Standard Features on Both Plants
- Hydraulic lube system automatically comes on when diesel starts. HEAVY DUTY proven design requires no expensive ROLLER Bearings. Internals of crusher are similar to that of SYMONS/NORDBERG design. Many parts are completely interchangeable. This is a rugged machine capable of crushing some of the hardest material.
- Complete lubrication system with pump and tank, gauges and safety shut downs.
- Complete hydraulic power pack system with all lines, gauges and system installed.
- “TURN KEY DESIGN” NEW JOHN DEERE or equivalent DIESEL POWER PLANT with HYDRAULIC SYSTEM. The hydraulic system has been engineered to operate in a variety of conditions. It is complete with coolers, filters, valves, hydraulic pumps, motors, hydraulic lines. Complete with heavy duty radiator, skid, exhaust system, air filter system, gauges, throttle control, panel, hood and radiator guard.
- TRACK DRIVE SYSTEM with RADIO REMOTE CONTROL.
- Constructed and built with low profile parameters for ease of transport.
- ONE PRIMER COAT AND TWO FINISH COATS OF PAINT.

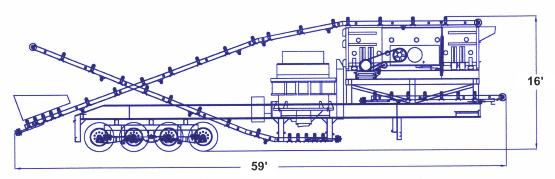

Also available as a Closed Circuit
Cone Plant – CKCCP3M- 3’ Cone Crusher with direct drive to cone & auxiliary hydraulics for all other components.
- “TURN KEY DESIGN” NEW JOHN DEERE or equivalent DIESEL POWER PLANT with HYDRAULIC SYSTEM.
- 4’ x 10’ 2-DECK INCLINED SCREEN, complete with hydraulic drive. Under screen chute, front discharge chute. SCREEN RAISES AND LOWERS HYDRAULICALLY FOR TRANSPORT.
- 42” wide X approx. 15’ Fines Product Conveyor. Discharge height approx. 12’ off ground. This conveyor hydraulically raises and lowers with the screen.
- 18” wide X approx. 15’ Side Product Conveyor. Conveyor hydraulically folds out and in for transport. Discharge height approx. 12’ off ground.
- 30” wide X approx. 35’ Main Feed Conveyor with receiving hopper, hydraulic drive. *The section of conveyor over the cone is hinged to facilitate transport and maintenance of cone and screen. Conveyor is supported with rugged tubular steel. Main feed conveyor feeds all material onto feed end of screen for pre-screening. Feed conveyor also delivers return crushed material back to feed end of screen for final sizing and discharge.
- 36” X approx. 25’ Under Crusher RETURN Conveyor complete with hydraulic drives delivers crushed material back to main feed conveyor.
- TRACK DRIVE SYSTEM with RADIO REMOTE CONTROL.
- Constructed and built with low profile parameters for ease of transport.
- ONE PRIMER COAT AND TWO FINISH COATS OF PAINT.
