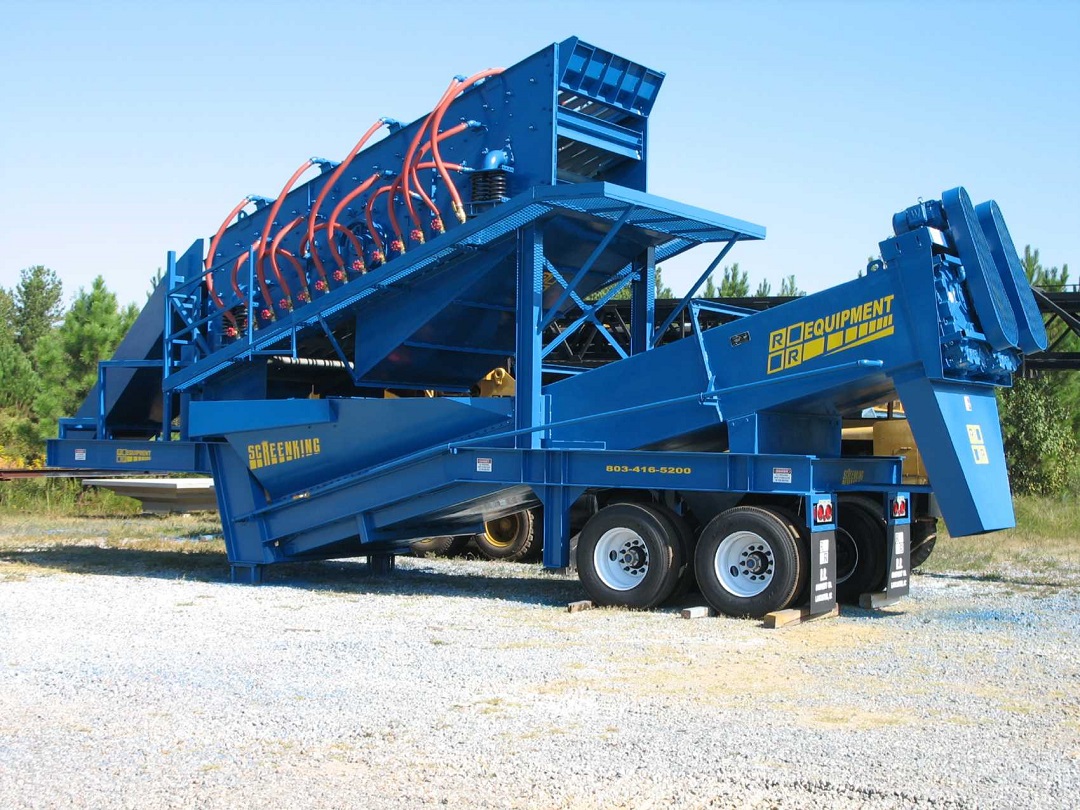

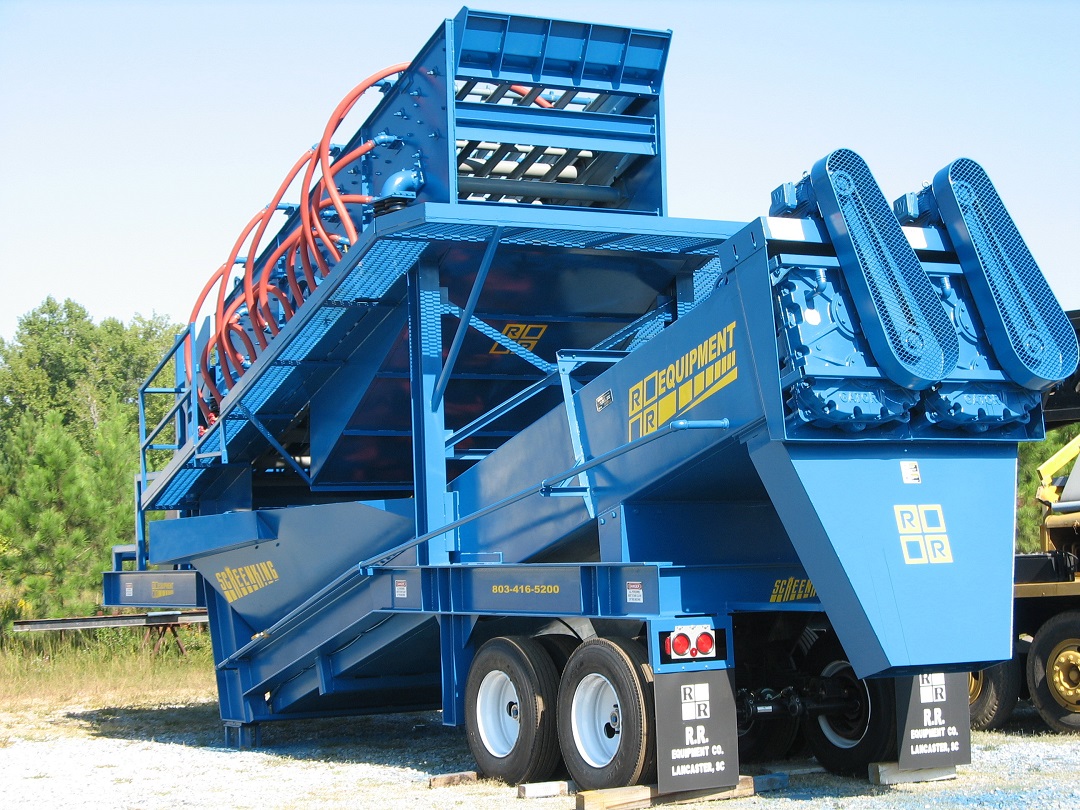

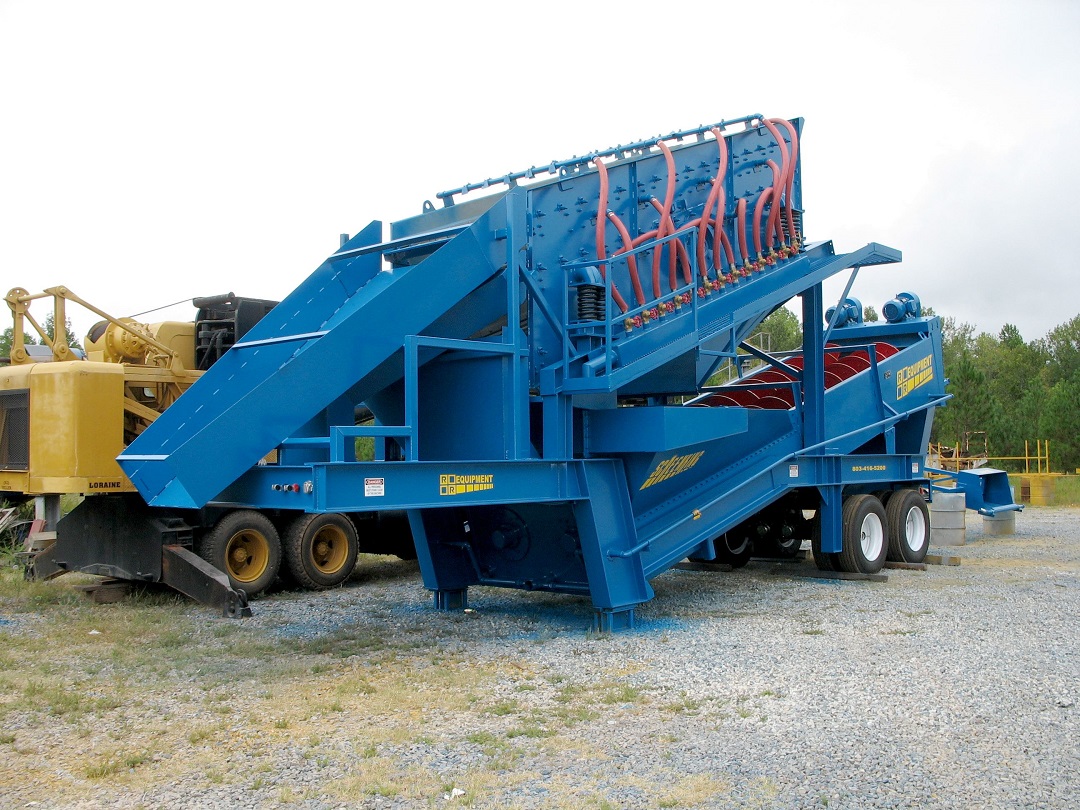

Portable SCREENKING® Washing Plants
- Choice of screens (incline or horizontal) 5×16 – 6×20
- Choice of screw washers (single 36, twin 36, twin 44 & twin 54)
- Electric and/or diesel power
- Easy transport & rapid set-up
- Screen lowers for transport – Optional hydraulic
- High water volume slurry box
- Complete water manifold mounted independent of shaking screen
- Individual brass ball valves & nozzles on each pipe
- Removable chutes
- Up to 600 TPH (TPH may vary depending on material & conditions)
- Portable screens w/out wet system available
Can be customized to meet your needs! Choose a screen & washer. We will do the rest – OR – Choose from one of our more popular plants below.

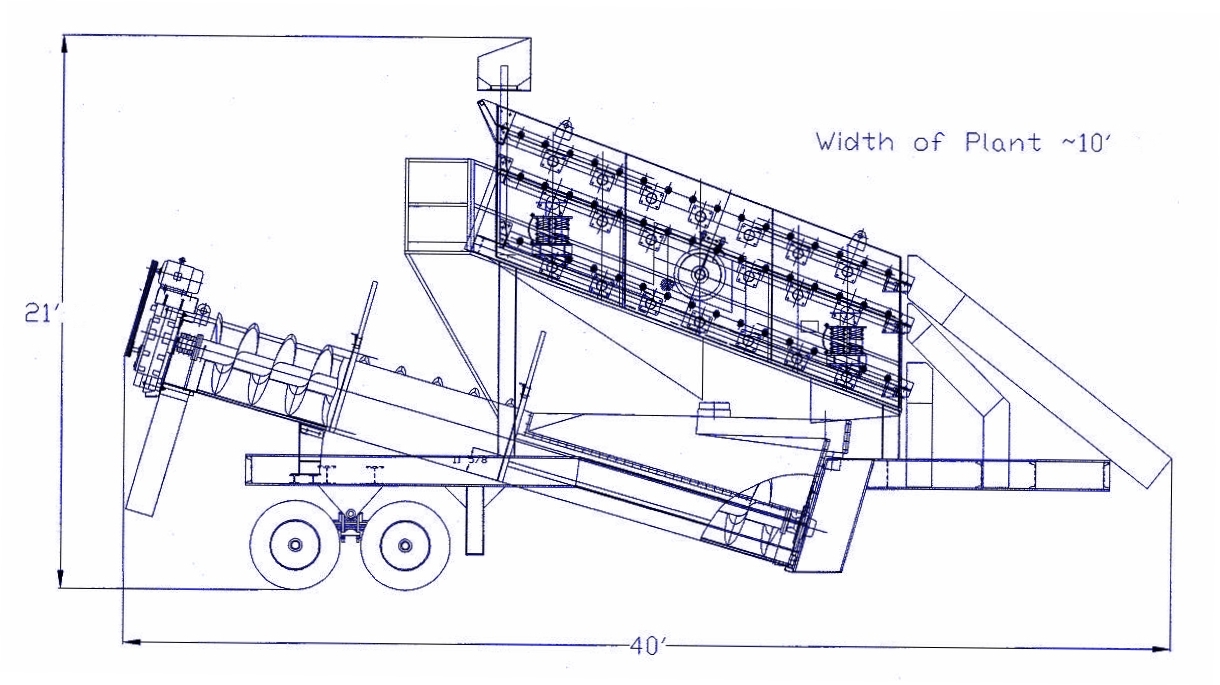

PORTABLE SCREENKING® SKWP5163 WASH PLANT
Entire plant will be mounted on a heavy duty single axle dual wheel chassis complete with air brakes, mud flaps, and fifth wheel pin.
Features:
5′ x 16′ 3-DECK INCLINED SCREEN:
- Complete with side tension, rails, electric motor and drives, motor base, mounting springs.
- Complete Water Spray bars on all three decks. Spray bar and water wash system consist of complete water manifold with brass ball valves to regulate flow. Brass spray jet nozzles designed to spray correct fan based on distance between each deck.
- All New discharge chutes and under screen flume/hopper feeding screw listed below.
- Complete Catwalk system mounted on both sides of screen with ladders and railings.
36″ x 25′ FINE MATERIAL SCREW WASHER:
- Screws are very similar to the EAGLE IRON WORKS Design.
- Positioned at correct angle under screen.
- Adjustable motor base and electric motor with drives.
Optional Equipment:
- Screen Cloth
- Installation of Various linings in chutes and flume
- Electric Control Panel: equipped with a complete electric control panel consisting of electrical switch gear, stop/start buttons and wiring from panel to each individual motor. The panel itself is enclosed by an outdoor NEMA enclosure
- Hydraulic Raise/Lower of screen box assembly
PORTABLE SCREENKING® SKWP6163 WASH PLANT
Entire plant will be mounted on a heavy duty single axle dual wheel chassis complete with air brakes, mud flaps, and fifth wheel pin.
Features:
6′ x 16′ 3-DECK INCLINED SCREEN:
- Complete with side tension, rails, electric motor and drives, motor base, mounting springs.
- Complete Water Spray bars on all three decks. Spray bar and water wash system consist of complete water manifold with brass ball valves to regulate flow. Brass spray jet nozzles designed to spray correct fan based on distance between each deck.
- All New discharge chutes and under screen flume/hopper feeding screw listed below.
- Complete Catwalk system mounted on both sides of screen with ladders and railings.
TWIN 36″ x 25′ FINE MATERIAL SCREW WASHER:
- Screws are very similar to the EAGLE IRON WORKS Design.
- Positioned at correct angle under screen.
- Adjustable motor base and electric motor with drives.
